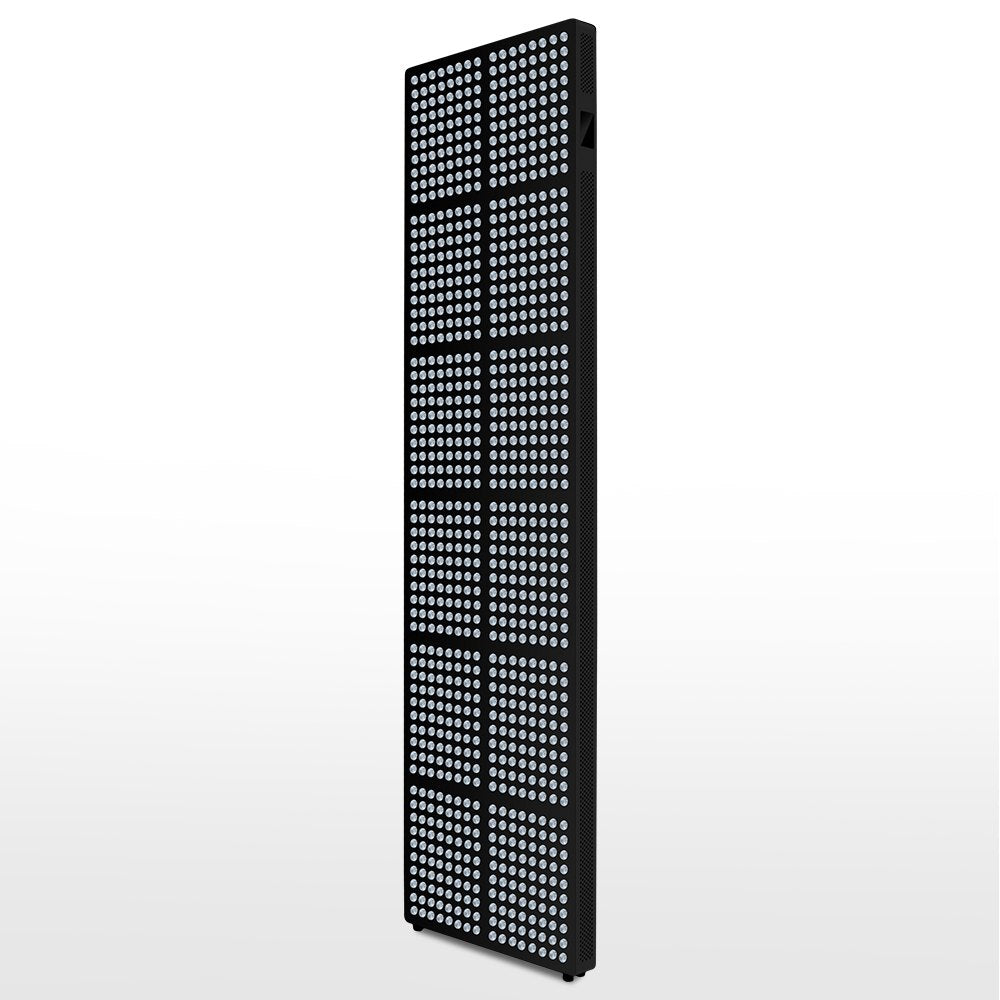

SL5000 Full Body Red Light Wellness Panel
The SL5000 is a high-output red light wellness panel designed to deliver broad full-body light-based coverage in a premium format. Designed for elite home wellness environments, luxury spas, and professional training facilities, this heavy-duty panel provides ultra-capacity full-body session support. Built with a seamless iron chassis, an advanced heat dissipation matrix, and a robust touch-control interface, the SL5000 offers a powerful light-based wellness experience that balances performance with architectural elegance.
Multi-Waveband Engineering
The SL5000 features a precision-engineered optical layout available in two advanced configurations, allowing you to choose the spectral setup that best fits your wellness routine and session preferences:
5-Waveband Configuration: Integrates five wavelengths — 630 nm, 660 nm, 810 nm, 830 nm, and 850 nm — distributed in a custom 96:384:48:48:384 configuration for balanced red and near-infrared (NIR) delivery.
7-Waveband Configuration: Expands the spectrum by incorporating 480 nm, 630 nm, 660 nm, 810 nm, 830 nm, 850 nm, and 940 nm wavelengths arranged in a 24:96:312:48:48:384:48 matrix for broader wavelength variety.
High Irradiance & Optical Power
Equipped with a large array of 960 high-output, first-class LEDs, each chip is connected using pure gold wiring and anchored to stable copper holders to support long-term operational stability. Paired with a precision 30-degree lens beam angle, the SL5000 concentrates light output to provide strong irradiance levels at multiple distances:
181 mW/cm² at a 6-inch distance
152 mW/cm² at a 12-inch distance
141 mW/cm² at an 18-inch distance
124 mW/cm² at a 24-inch distance

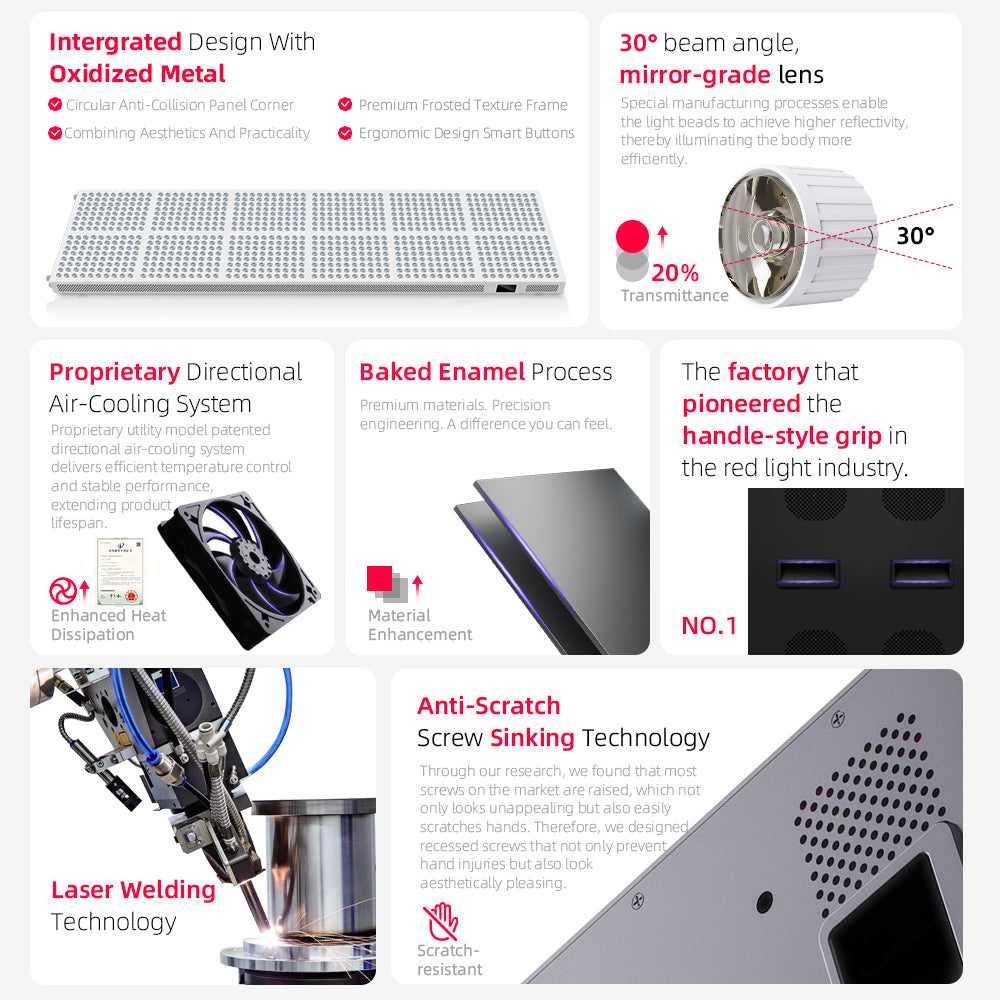

Sleek Structural Architecture & Thermal Management
The SL5000 is crafted with an Iron frame featuring sleek, seamless contours that create a refined presence in any wellness space. It incorporates a patented heat dissipation system designed to support stable internal cooling performance and long-term optical core operation. For added convenience, the panel features a genuine modular interior layout that simplifies maintenance and supports long-term usability.
Intelligent Digital Customization
Take full control of your wellness sessions using the integrated console interface, supporting independent programming of the Red and Near-Infrared (NIR) spectrums across three core settings:
Digital Timer: Programmable from 1–30 minutes or 0–30 minutes to match your daily schedule.
Intelligent Dimmer: Adjustable power settings up to 100% or via a precise 0–100% linear range to match user comfort preferences.
Advanced Pulse Mode: Features adjustable frequency settings from 0 Hz up to 10,000 Hz for customized session programming.
Key Product Features
High Light Density: Delivers strong irradiance output for efficient light-based wellness sessions.
Seamless Iron Construction: Heavy-duty, high-stability chassis with a clean, low-profile perimeter.
True Modular Interior Architecture: Internal infrastructure is entirely modular for simplified servicing and long-term convenience.
Premium LED Components: Connected via pure gold wires on copper holders to support long-term power stability.
Flicker-Free Performance: Engineered to provide a smooth, continuous wave supply that helps reduce visible flicker.
Ultra-Low EMF Signature: Safeguarded internals are designed to limit electromagnetic field output to 10 μT at a 3-inch boundary.
Independent Control: Separately adjust, dim, or pulse Red and NIR channels to customize your light-based wellness sessions.
Specifications
Model Name: SL5000
Chassis Material: Heavy-Duty Protective Iron
Input Voltage: 100-240VAC 50/60 Hz (Universal Power Compatibility)
Rated Power Capacity: 4800W
Actual Power Consumption: 1310W draw
Physical Dimensions: 1800 x 473 x 60 mm (70.9 x 18.6 x 2.4 inches)
Net Weight: 27.7 kg (61 lbs)
Total LED Count: 960 Commercial-Grade Pieces
Lens Beam Concentrator: 30 Degree
Operational Lifespan: Rated up to 100,000 Hours
Manufacturer's Warranty: 3-Year Protection Plan
Control System: Touch Key-Press or Intelligent HD Touch Screen Revision
What’s Included
-
(1) SL5000 Full Body Red Light Wellness Panel
-
(1) Intelligent Touch Screen Remote & Master Control Kit
-
(1) Universal Power Cord (100-240V)
-
(1) Heavy-Duty Hanging & Mounting Hardware Kit
-
(1) Professional User Manual & Safety Guide
