Upper-body coverage
At 45.6 inches tall, one panel covers the upper body or half the body in a single session. Add the floor stand, motorized stand, steel base or acrylic base to set it up where you use it.
Red Light Therapy · RH Series

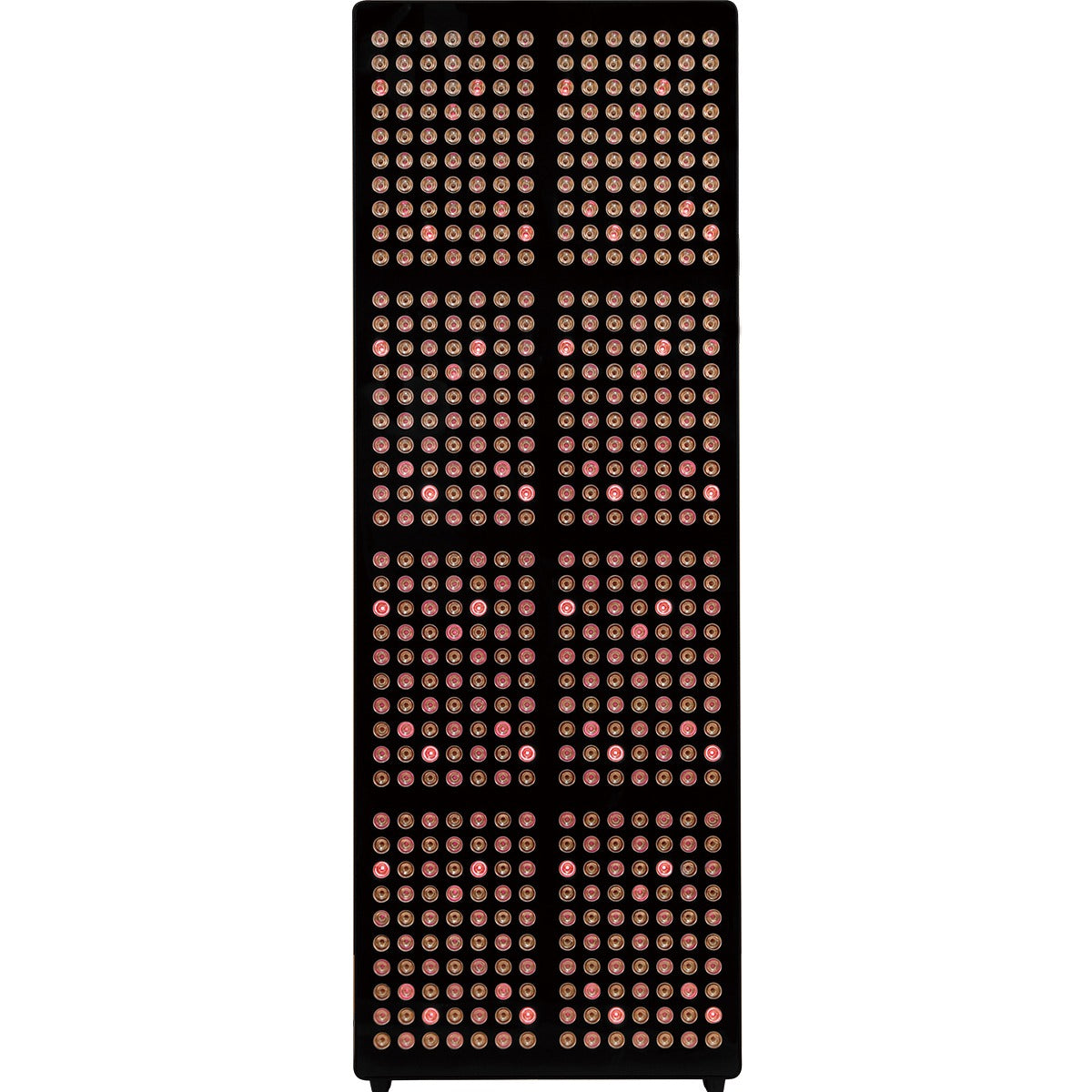

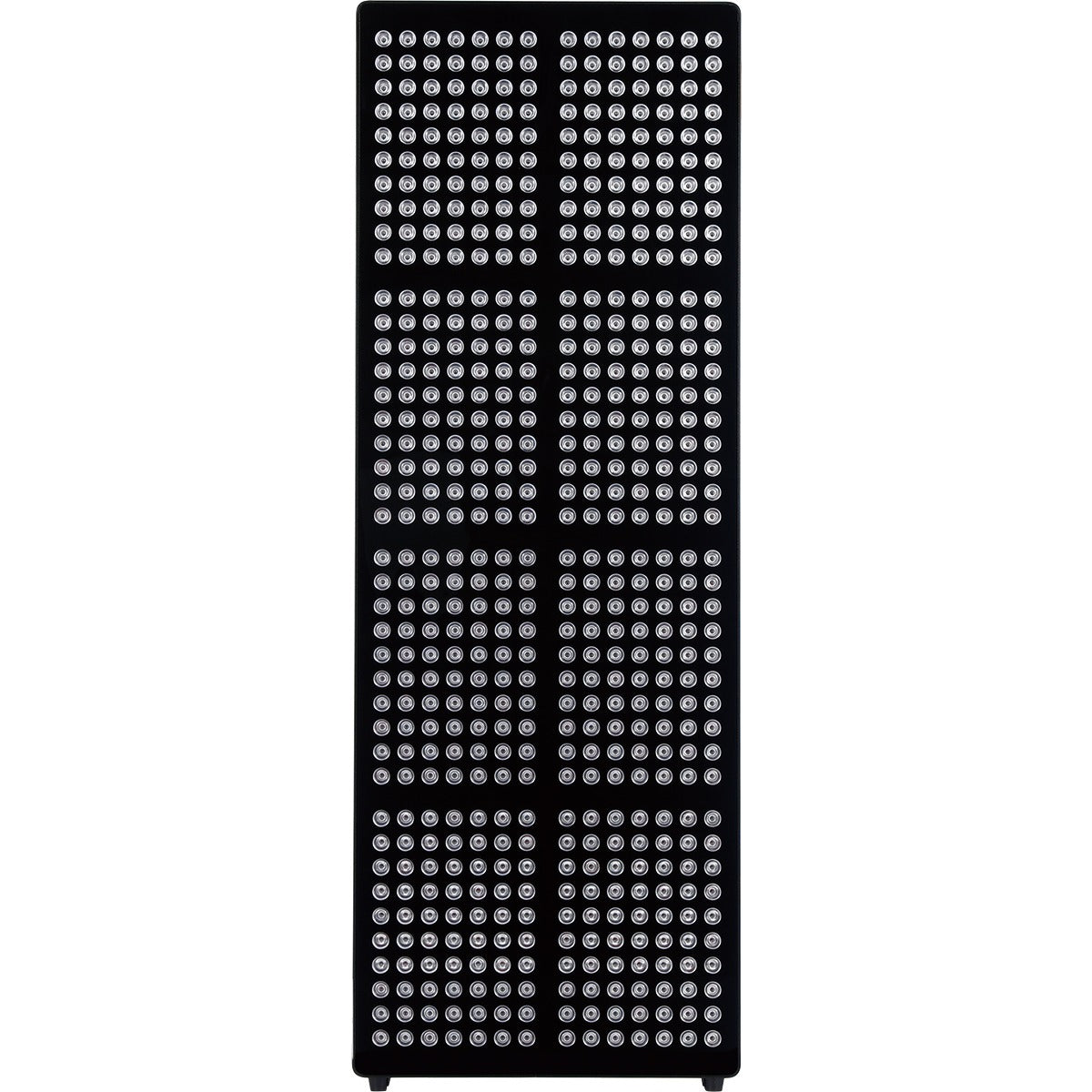

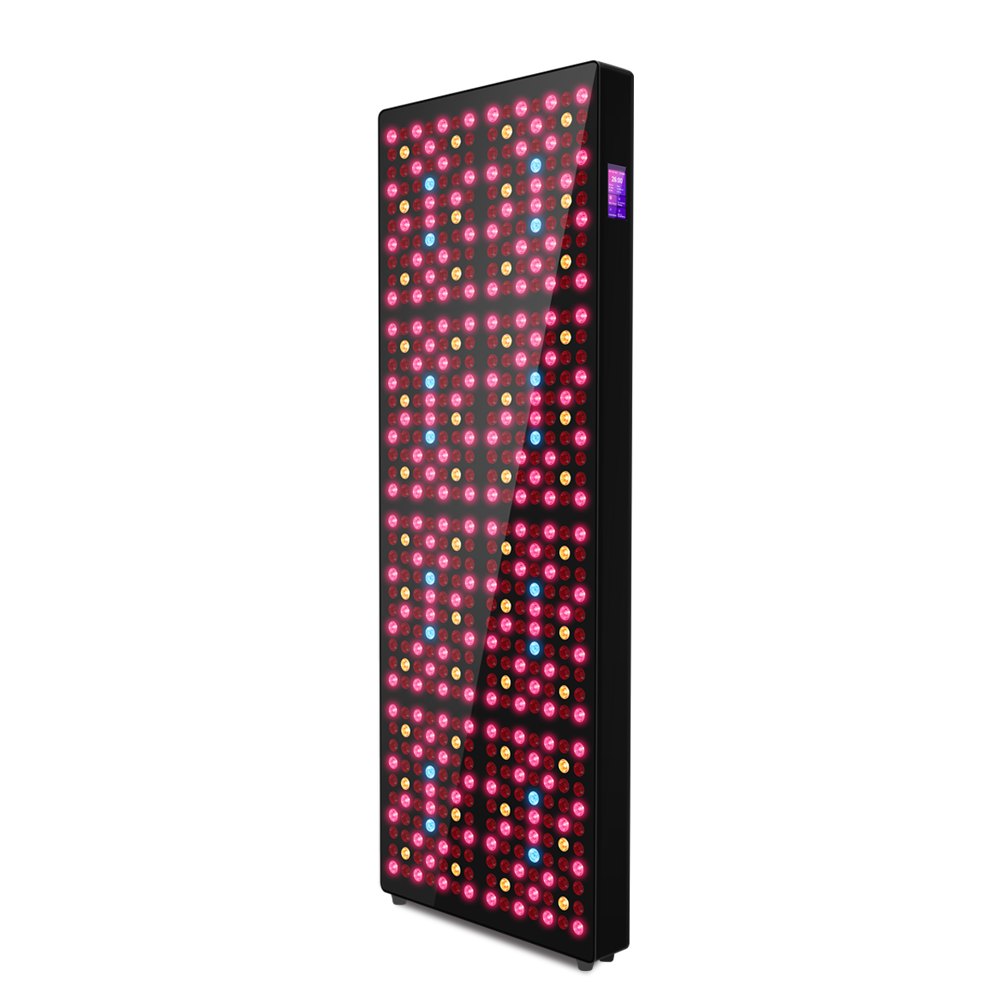

Full Body RH2400 Red Light Wellness Panel
Regular price $1,899.00 Complimentary shipping · contiguous U.S.
A 45.6-inch panel sized for upper-body or half-body sessions. Choose five or seven wavelengths, with separate red and near-infrared control and the same aluminum build as the rest of the RH series.
- 560LEDs
- 5 or 7wavelengths
- 45.6″panel height
- 3-yrwarranty
- ◷Estimated delivery 3–9 business days Ordered by 2 PM ET ships in 1–2 business days. With a stand, your order arrives in two boxes.
- ◇3-year limited manufacturer warranty Repair or replacement of defective components. Details
- ↺30-day returns On unused items in original packaging. Return policy
- ✦Questions? Chat with us now Instant answers on sizing, setup and delivery. Start a chat
Not sure which panel fits your space?Our wellness team can help you compare sizes, mounting and power needs, with answers in seconds.
Overview
Sized for upper-body sessions at home
Precise, personal control
An HD touchscreen sets time, brightness and pulse separately for red and near-infrared light, with preset modes and up to 20 saved custom settings.
Built to last
An aluminum alloy frame with no side vents, rear cooling fans and modular LED boards. The LEDs are rated for 100,000 hours.
Light output
Five or seven wavelengths, measured at every distance
Choose red and near-infrared (5 wavelengths), or add blue and 940 nm near-infrared (7 wavelengths). Below are the manufacturer's LED counts and irradiance readings so you can compare panels on the same terms.
LED distribution, 7 wavelengths (560 LEDs)

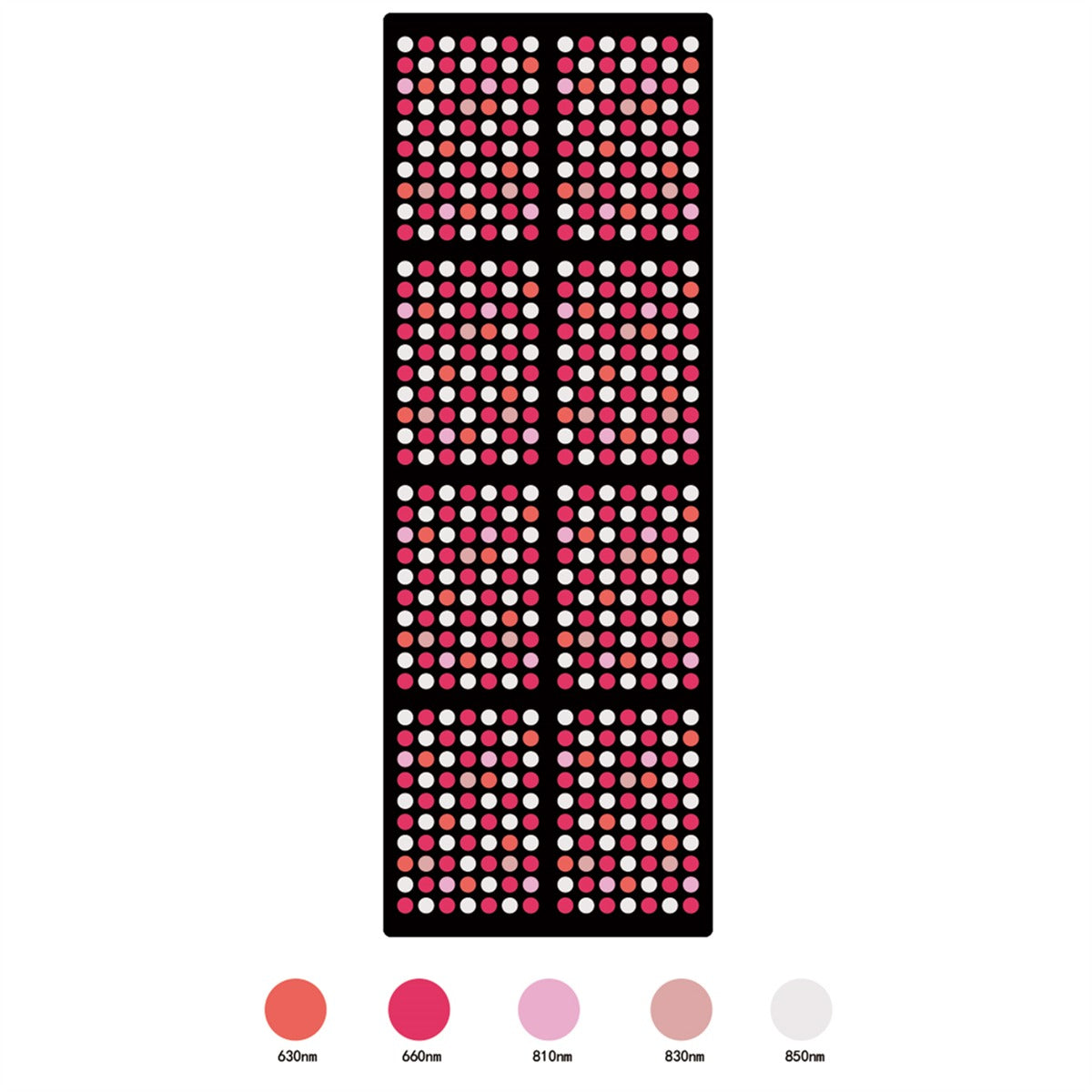

LED distribution, 5 wavelengths (560 LEDs)
Red (630 / 660 nm) and near-infrared (810–940 nm) have separate dimmer and pulse controls. On the 7-wavelength version, blue (480 nm) can be turned off without affecting the others.
What the research shows for each wavelength is covered in the Longevity Library.
Irradiance and coverage by distance
| Distance | Irradiance | Coverage area |
|---|---|---|
| 6 in | 152 mW/cm² | 48.7 × 19.6 in |
| 12 in | 131 mW/cm² | 51.9 × 22.8 in |
| 18 in | 117 mW/cm² | 55.1 × 26.0 in |
| 24 in | 101 mW/cm² | 58.3 × 29.2 in |
Manufacturer-measured values. The recommended use distance is 6–24 inches.
Specifications
Full technical specifications
Light
- LEDs

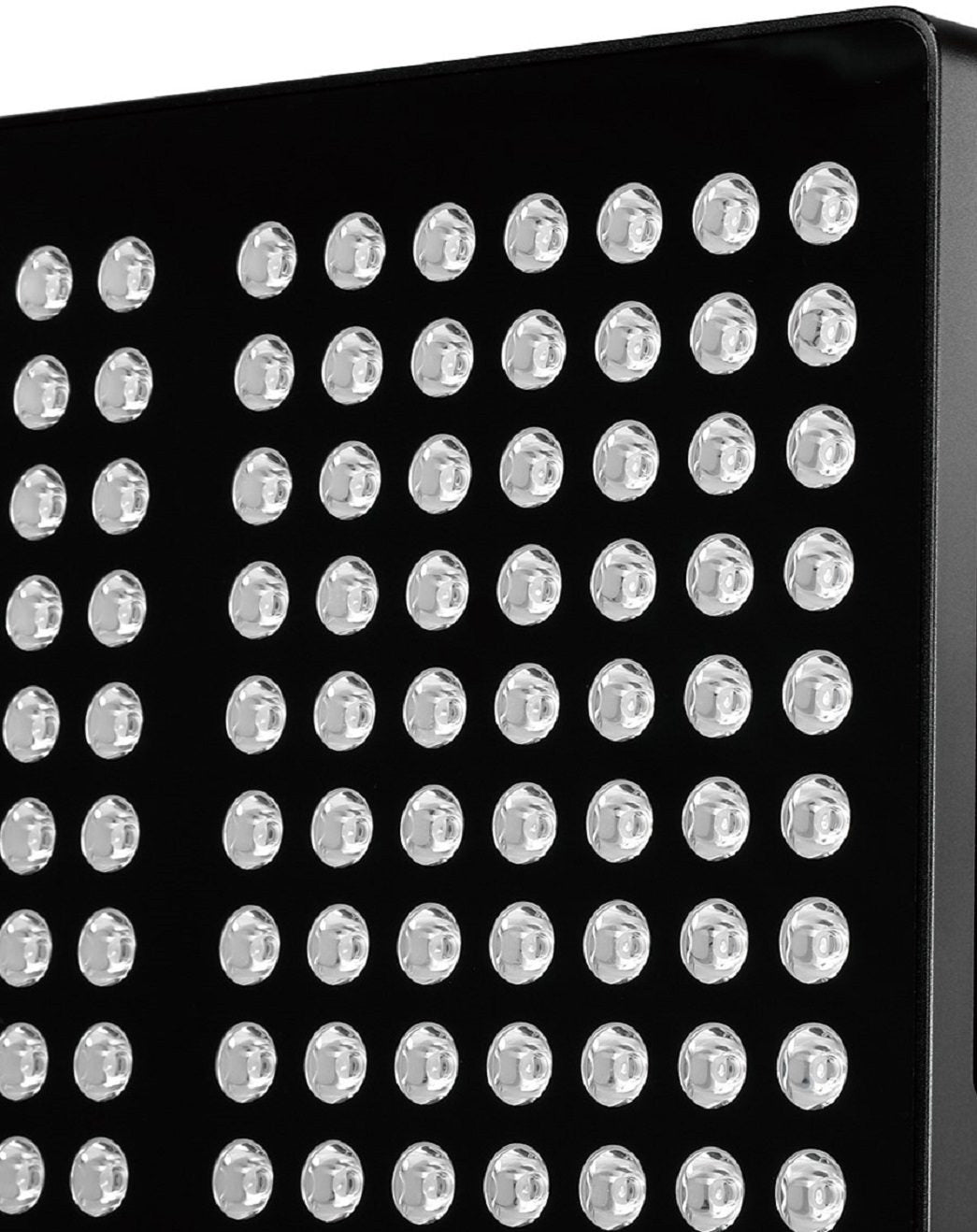

- 560 (gold-wire bonded, copper holders)
- 5 wavelengths
- 630 · 660 · 810 · 830 · 850 nm (56 : 224 : 32 : 24 : 224)
- 7 wavelengths
- 480 · 630 · 660 · 810 · 830 · 850 · 940 nm (16 : 56 : 208 : 32 : 24 : 200 : 24)
- Lens beam angle
- 30°
- Irradiance
- 152 mW/cm² at 6 in · 101 mW/cm² at 24 in
- Flicker
- Flicker-free
- EMF
- 0 μT at 3 in
- LED lifespan
- 100,000 hours
Size & build
- Panel dimensions
- 45.6 × 16.3 × 2.79 in (1159 × 415 × 71 mm)
- Panel weight
- 40.8 lb (18.5 kg)
- Frame
- Aluminum alloy, no side vents
- Front cover
- Patented acrylic sheet, water- and scratch-resistant

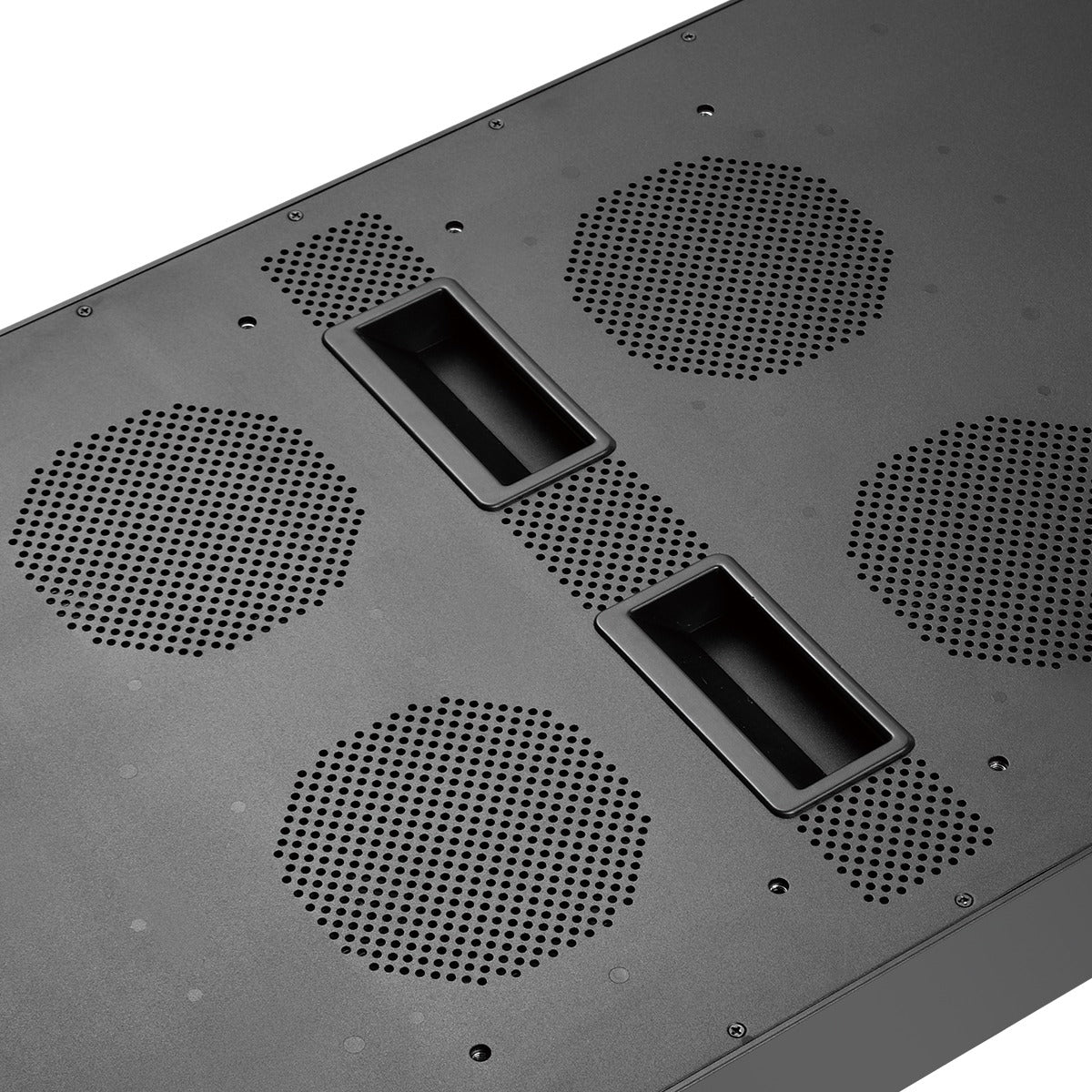

- Cooling
- Rear cooling fans with patented heat dissipation
- Construction
- Modular LED boards
Electrical

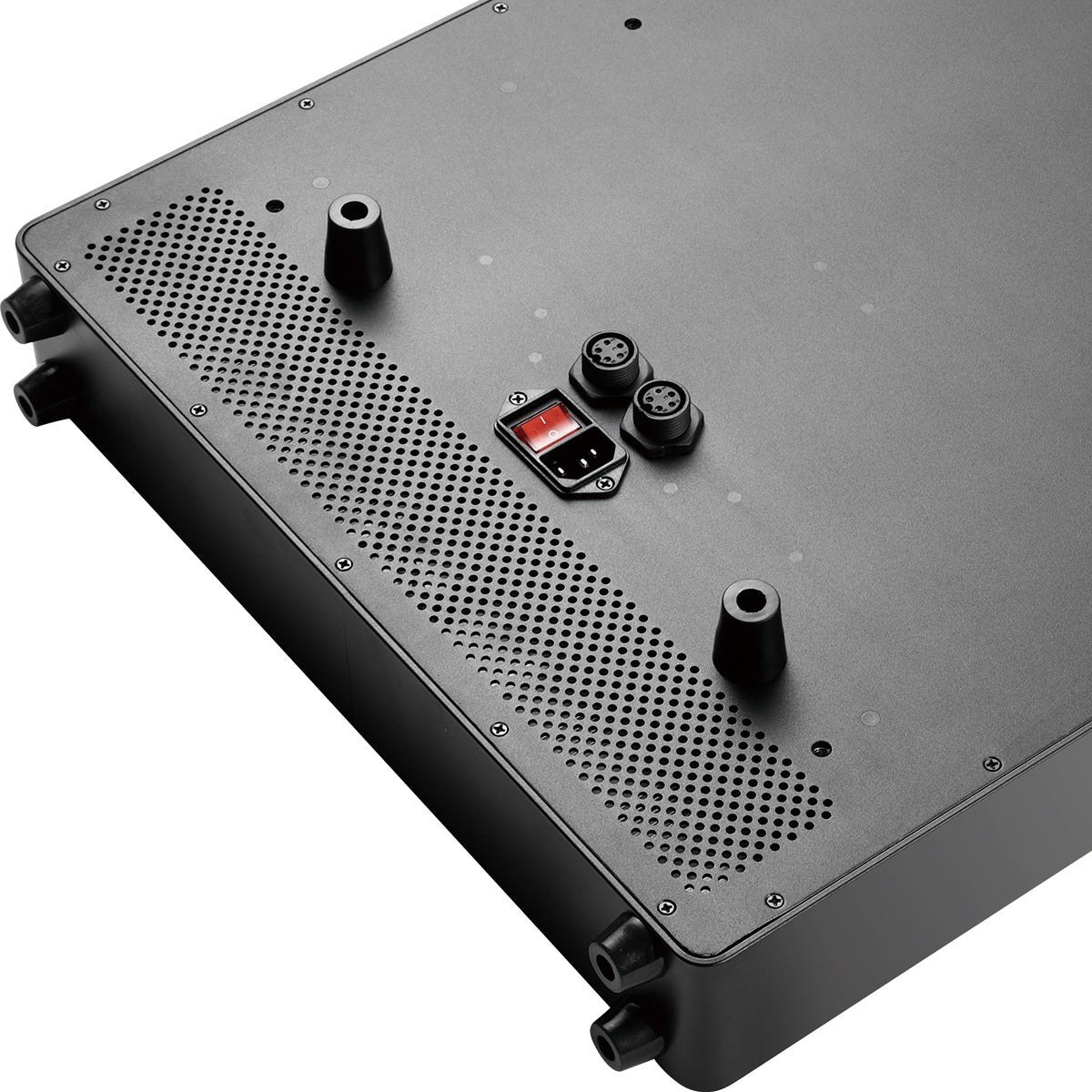

- Input voltage
- 100–240 VAC, 50/60 Hz
- Power consumption
- 728 W (about 6.1 A at 120 V)
- Rated LED power
- 2,800 W
- Plug
- Standard U.S. power cord included
Controls
- Interface
- HD color touchscreen
- Timer
- 0–30 minutes, or 5-minute steps
- Dimmer
- 0–100%, independent for red and near-infrared
- Pulse
- 0–10,000 Hz, independent for red and near-infrared
- Modes
- 6 preset modes, up to 20 saved custom settings
- Multiple panels
- Wireless synchronization by panel ID
Steel base (optional)
- Model
- SZGYHAL3600, made for the RH2400
- Material
- Steel, black
- Use
- Holds the panel upright on the floor, no wall mounting
- Shipping package
- 20.1 × 13.8 × 7.9 in, 8.8 lb (4 kg)
Acrylic base (optional)
- Model
- SZGYHRH2400, made for the RH2400
- Material
- Acrylic, black
- Use
- Holds the panel upright on the floor, no wall mounting
Motorized stand (optional)
- Height adjustment
- Motorized; lowest 27.5 in, highest 66.9 in
- Base footprint
- 36.4 × 28.1 in, four casters
- Orientation
- Panel rotates for vertical or horizontal use
- Control
- Wireless remote and wired keypad, 3 memory heights, cm/inch display
- Stand weight
- 77.2 lb (35 kg)
Warranty
- Coverage
- 3-year limited manufacturer warranty from the date of shipment
- Remedy
- Repair or replacement of defective components
- Exclusions
- Misuse, accidental or intentional damage, unauthorized modification, force majeure
Dimensions & space
Plan your space
The panel is slim enough for a bedroom corner or a dedicated suite. Allow 6–24 inches between you and the panel during use.
Space checklist
- Floor area with the motorized stand: about 36.4 × 28.1 in for the base, plus 6–24 in in front for use
- Power: a standard 100–240 V outlet; the panel draws about 6.1 A at 120 V
- Airflow: keep the rear fans clear; don't use it in wet or dusty spaces
Mounting options
Every panel includes a wall/door hanging kit. For a freestanding setup, add a stand.
Adjustable floor standManual height adjustment, black or whiteAdd-on above · +$390.60
Motorized standHeight-adjustable with remote, vertical or horizontal useAdd-on above · +$1,068.20
Steel baseLow-profile floor base made for the RH2400Add-on above · +$252.00
Acrylic baseBlack acrylic floor base made for the RH2400Add-on above · +$222.60Controls
Simple to start, detailed when you want it

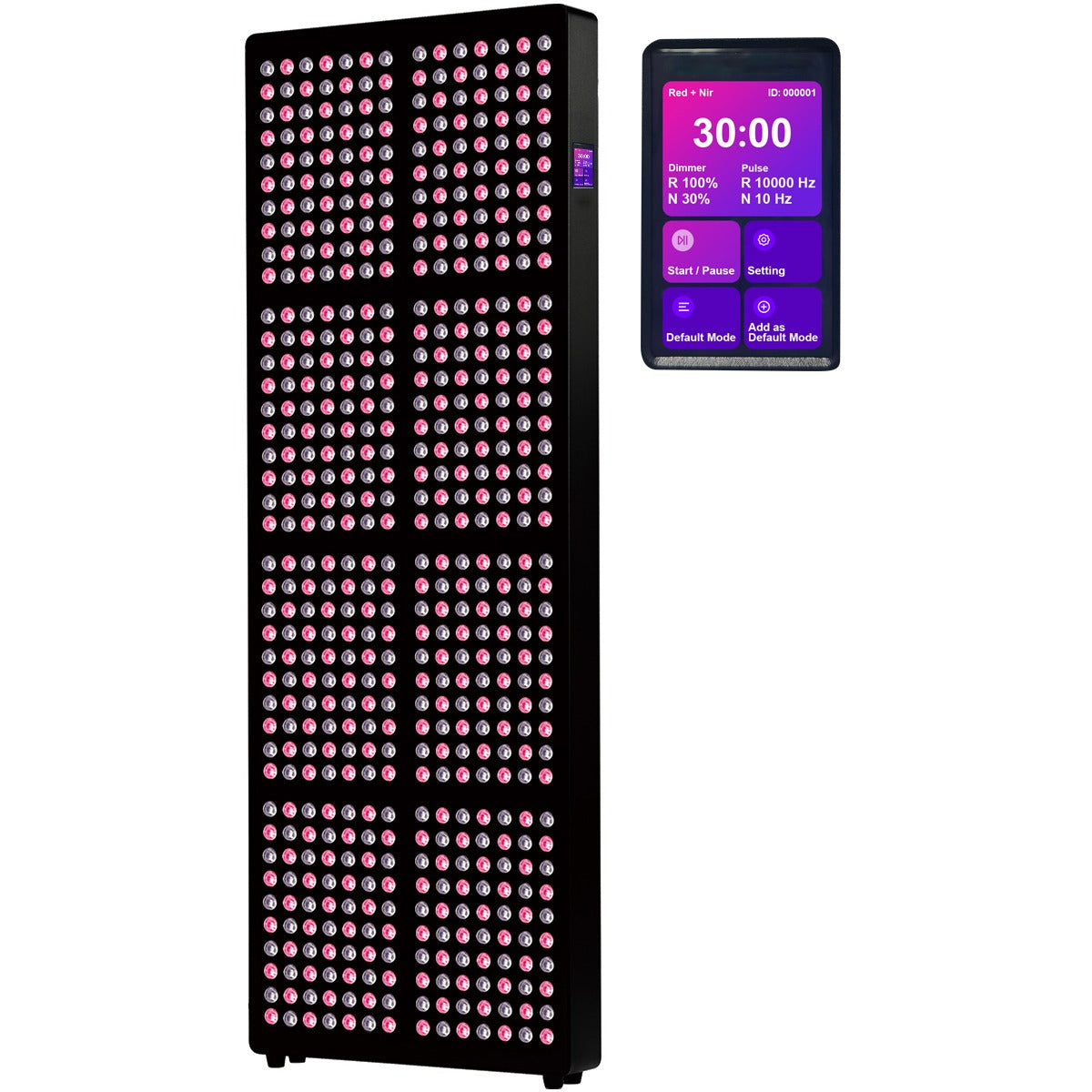

HD touchscreen
Choose your light mode, then set time, brightness and pulse from the side-mounted screen.

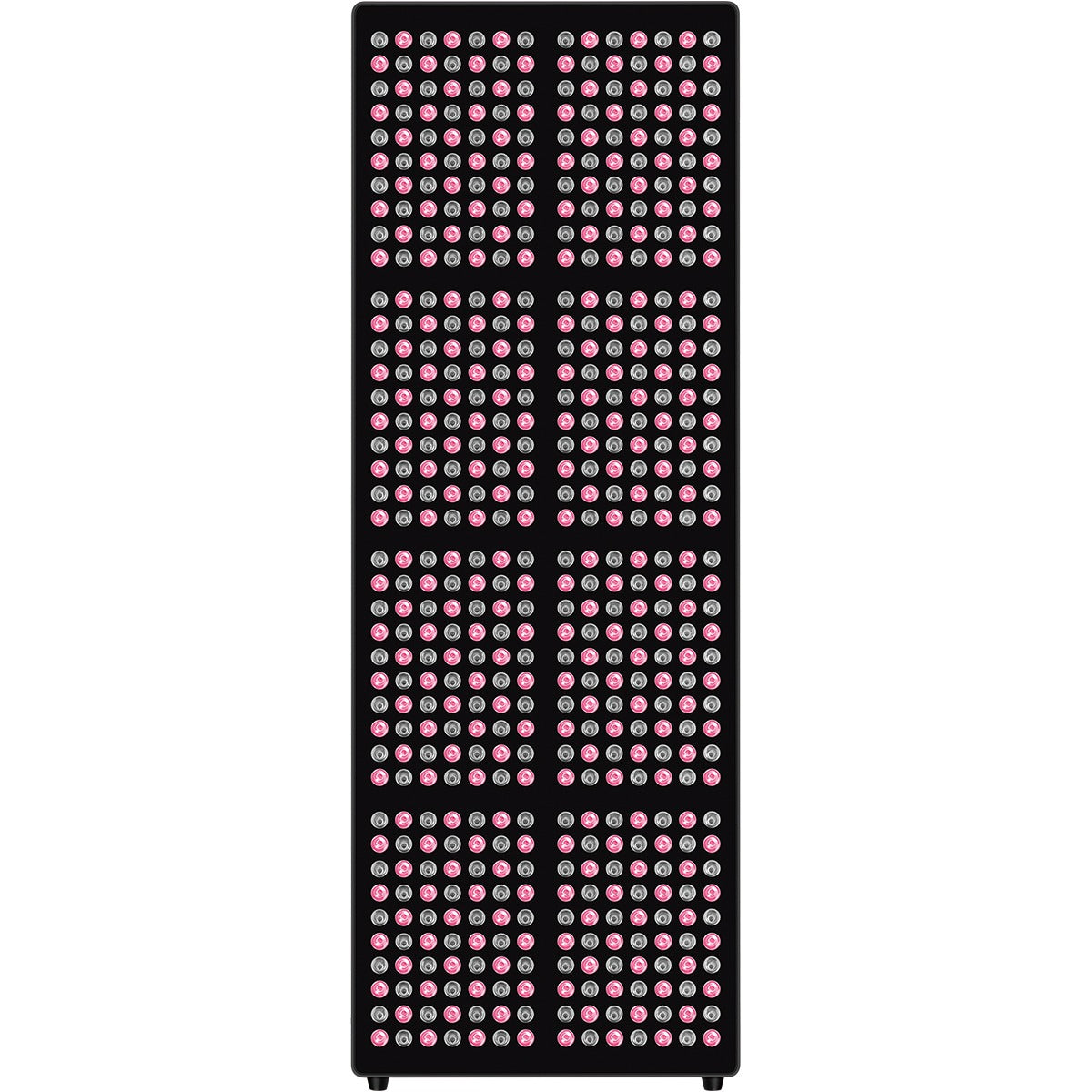

Independent red and near-infrared
Run red and near-infrared together or on their own, each with its own brightness and pulse setting.
Presets & saved settings
Six preset modes, plus up to 20 custom settings you can name and recall.
Multi-panel sync
Add a second panel later and run both with the same settings by panel ID.
In the box
What arrives
Panel package
- RH2400 panel
- Remote control
- Power cord (U.S.)
- Wall/door hanging kit
- Protective goggles
Motorized stand package (if selected)
- Square post, base, base plate and 4 casters
- Control box, adaptor and power cord
- Remote control and wired keypad
- Panel fixing rods, cross braces and lifting-rod connector
- All screws, plus 4 mm and 5 mm hex wrenches
A stand or base ships in its own box, at the same time as the panel. They often arrive 4–24 hours apart.
Setup & use
Manufacturer's guidance
From the RH-series user manual. This is general product guidance, not medical advice. If you have a health condition or take medication, check with your clinician before starting.
Getting started
- Stand or sit 6–24 inches from the panel with skin exposed
- Wear the protective eyewear during every session
- New users: start below 60% brightness for about 10 minutes, every other day, for the first 1–2 weeks
Typical session
- Red and near-infrared together, 50–80% brightness
- 10–30 minutes per area, no more than 30 minutes in one session
- Up to once daily for the same area; pulse at 0 Hz unless a professional advises otherwise
Check with your clinician first if you
- Are pregnant, or have epilepsy, lupus or a malignant tumor
- Have photosensitivity or take medications that increase light sensitivity
- Have hyperthyroidism, have recently had LASIK, or are under 13
See the user manual for the full list.
Compare
Find the right size
| RH2400 This panel | RH3600 | SL5000 | |
|---|---|---|---|
| Best for | Upper body or half body | Full body, head to legs | Full body, highest output |
| Size | 45.6 × 16.3 × 2.79 in | 67.6 × 16.3 × 2.79 in | 70.9 × 18.6 × 2.4 in |
| Weight | 40.8 lb | 81.6 lb | 61 lb |
| LEDs | 560 | 840 | 960 |
| Wavelengths | 5 or 7 | 7 | 5 or 7 |
| Irradiance at 6 in / 24 in | 152 / 101 mW/cm² | 154.6 / 108 mW/cm² | 181 / 124 mW/cm² |
| Power use | 728 W | 1,092 W | 1,310 W |
| Frame | Aluminum alloy | Aluminum alloy | Powder-coated steel, black or white |
| Price | From $1,899 | From $2,599 | From $2,519 |
| View RH3600 | View SL5000 |
Shipping, returns & warranty
Clear terms, before you buy
Shipping
Complimentary economy shipping on orders $100+ within the contiguous U.S. Orders placed by 2 PM ET begin processing in 1–2 business days, and delivery typically takes 3–9 business days in total. We can't ship to Alaska, Hawaii, U.S. territories, P.O. boxes or APO/FPO addresses.
Returns
Request a return within 30 days of delivery for unused, uninstalled items in their original packaging. Please report damage within 48 hours of delivery. Approved non-defective returns have a 25% restocking fee, and return shipping is the customer's responsibility. Full return policy
Warranty
A 3-year limited manufacturer warranty begins on the date of shipment. It covers repair or replacement of components that fail in normal use. It excludes misuse, accidental damage and unauthorized modifications.
FAQ
Questions, answered
Do I need the stand?
No. Every panel comes with a wall/door hanging kit. If you prefer a freestanding setup, add the adjustable floor stand, the motorized stand, the steel base or the acrylic base. Both bases hold the panel upright on the floor. The motorized stand adds hands-free height adjustment and lets you use the panel horizontally, for example above a bed or table.
What kind of outlet does it need?
A standard household outlet. The panel accepts 100–240 V and uses 728 W, which is about 6.1 A on a 120 V circuit.
How far should I stand from the panel?
The manufacturer recommends 6–24 inches. Closer distances deliver higher irradiance to a smaller area. Farther distances cover a wider area at lower intensity.
How long is a session?
The manufacturer's guidance is 10–30 minutes per area, and no more than 30 minutes per session. New users should start with about 10 minutes at under 60% brightness. See Setup & use above for details.
Is eye protection needed?
Yes. Protective goggles are included with every panel, and the manufacturer recommends wearing them during every session.
Does it get hot or make noise?
Rear cooling fans manage heat, and they are audible while the panel runs. The manufacturer hasn't published a sound rating for the RH2400. Keep the rear vents clear.
Should I choose 5 or 7 wavelengths?
Both versions have 560 LEDs and the same size, controls and warranty. The 7-wavelength version adds blue (480 nm) and deeper near-infrared (940 nm). Blue can be switched off on its own. If you only want red and near-infrared, the 5-wavelength version covers it.
Can I add a second panel later?
Yes. Panels can be synchronized wirelessly so they run with the same settings.
How is it delivered?
Shipped by carrier to your door, with complimentary shipping in the contiguous U.S. If you add a stand or base, it arrives as a second box, often a few hours apart.
What if something arrives damaged?
Photograph the packaging and product, then contact us within 48 hours of delivery. Chat with us now or email info@heavenlifewellness.com. We'll guide you through the next steps.
