Head-to-legs coverage

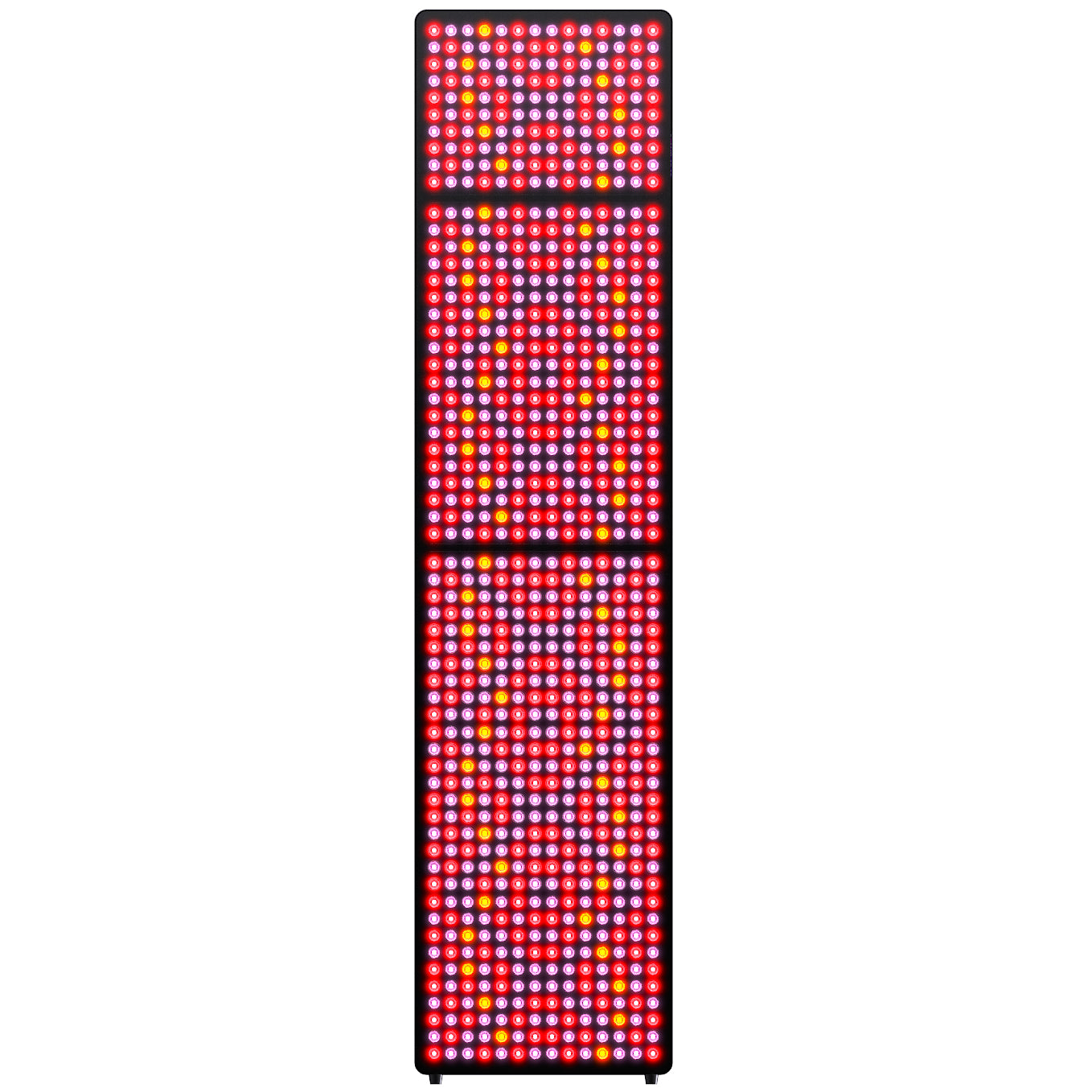

At 67.6 inches tall, one panel covers most of the body at once, so there's no need to reposition between sessions. The panel is built in three zones sized for head, torso and legs.
Red Light Therapy · RH Series
Full Body RH3600 Red Light Wellness Panel
Regular price $2,599.00 Complimentary shipping · contiguous U.S.

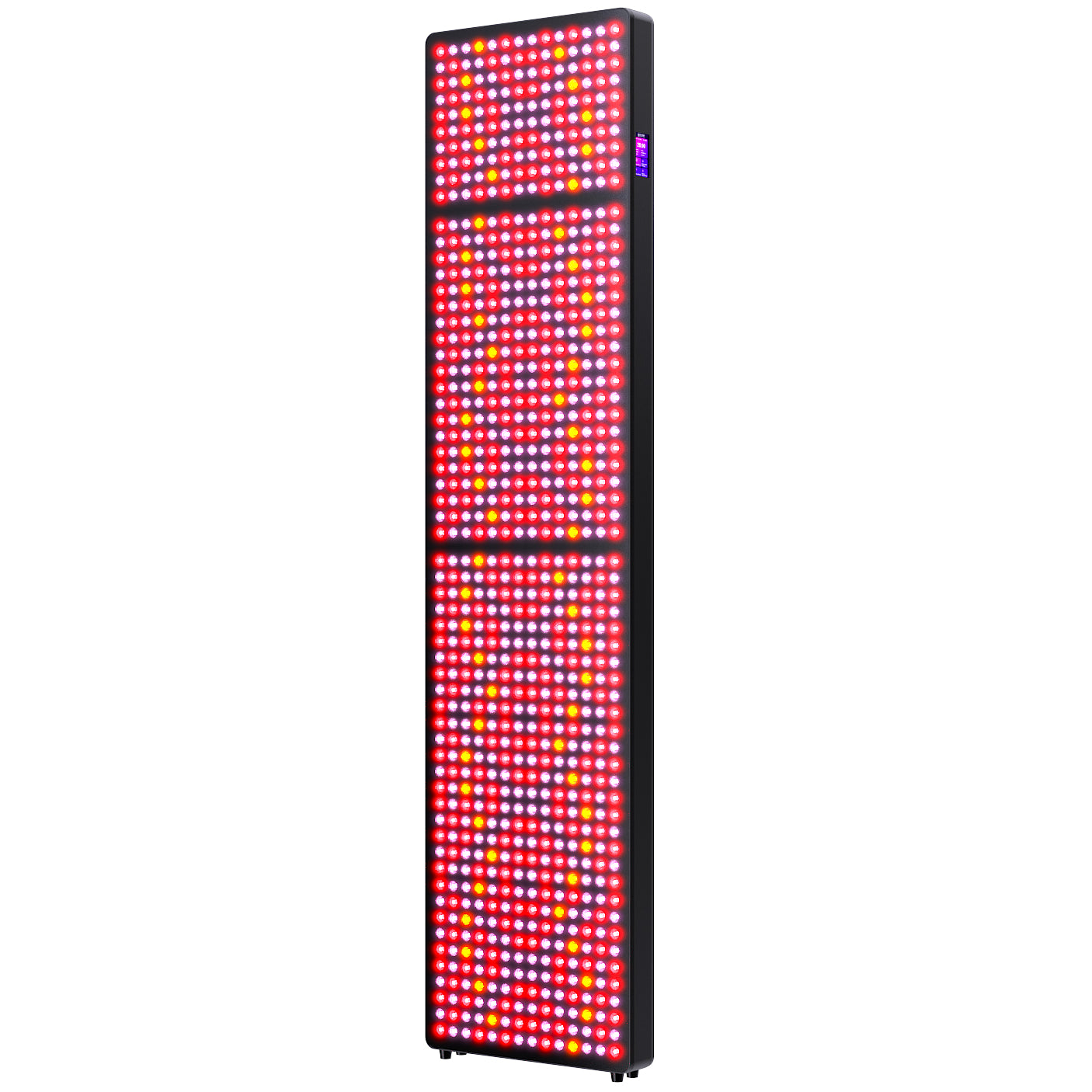

A single 67.6-inch panel that covers you from head to legs in one session. Seven wavelengths, separate red and near-infrared control, and a quiet aluminum build designed for a dedicated home wellness space.
- 840LEDs
- 7wavelengths
- 67.6″panel height
- 3-yrwarranty
- ◷Estimated delivery 3–9 business days Ordered by 2 PM ET ships in 1–2 business days. With a stand, your order arrives in two boxes.
- ◇3-year limited manufacturer warranty Repair or replacement of defective components. Details
- ↺30-day returns On unused items in original packaging. Return policy
- ✦Questions? Chat with us now Instant answers on sizing, setup and delivery. Start a chat
Not sure which panel fits your space?Our wellness team can help you compare sizes, mounting and power needs, with answers in seconds.
Overview
Designed for full-body sessions at home
Precise, personal control
An HD touchscreen and remote set time, brightness and pulse separately for red and near-infrared light. Blue light can be switched off on its own, and up to 20 custom settings can be saved.
Built to last

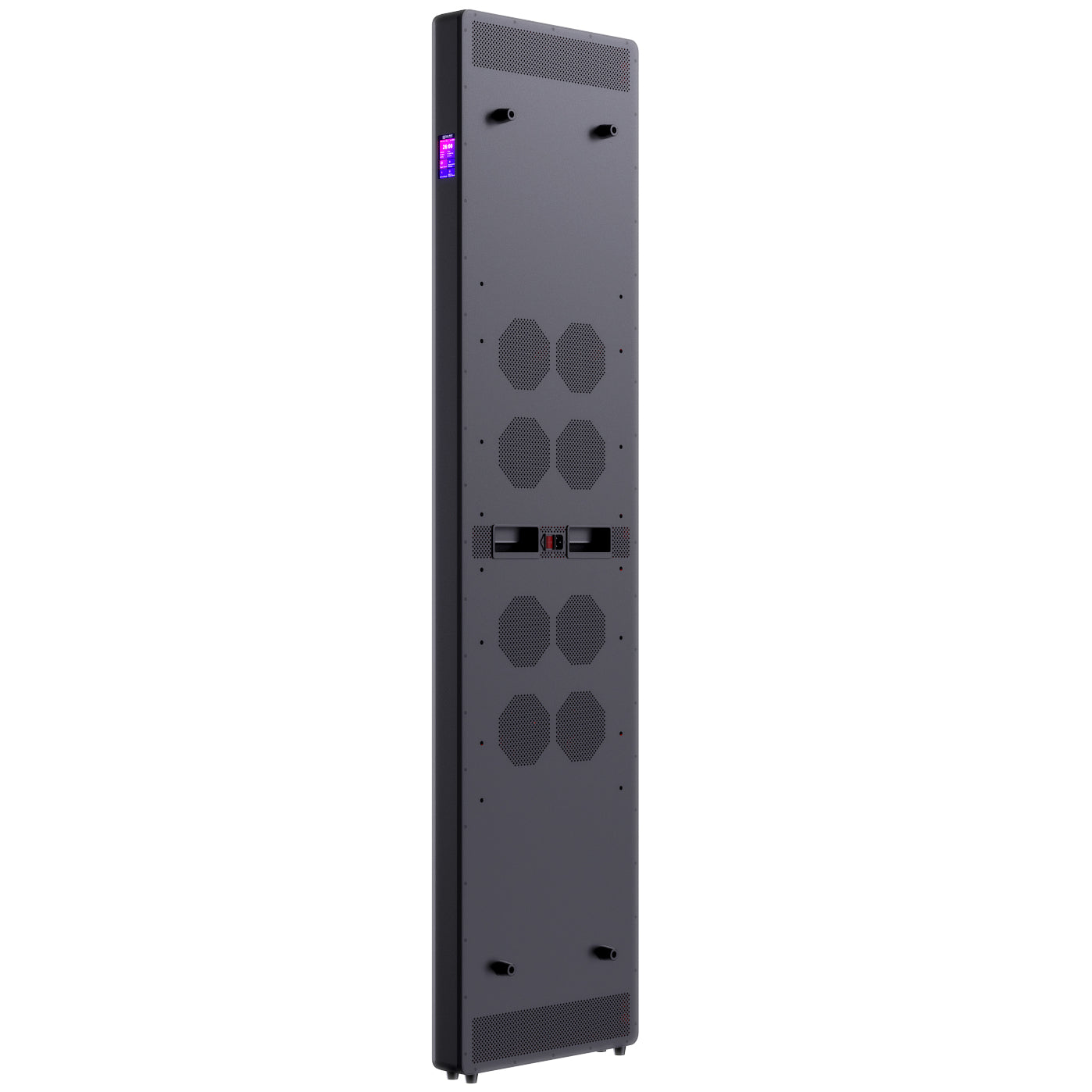

An anodized aluminum frame, eight cooling fans with aluminum heat fins, and modular LED boards that can be serviced individually. The LEDs are rated for 100,000 hours.
Light output
Seven wavelengths, measured at every distance
The panel combines blue, red and near-infrared LEDs. Below are the manufacturer's LED counts and irradiance readings so you can compare panels on the same terms.
LED distribution (840 LEDs)
Red (630 / 660 nm) and near-infrared (810–940 nm) have separate dimmer and pulse controls. Blue (480 nm) can be turned off without affecting the others.
What the research shows for each wavelength is covered in the Longevity Library.

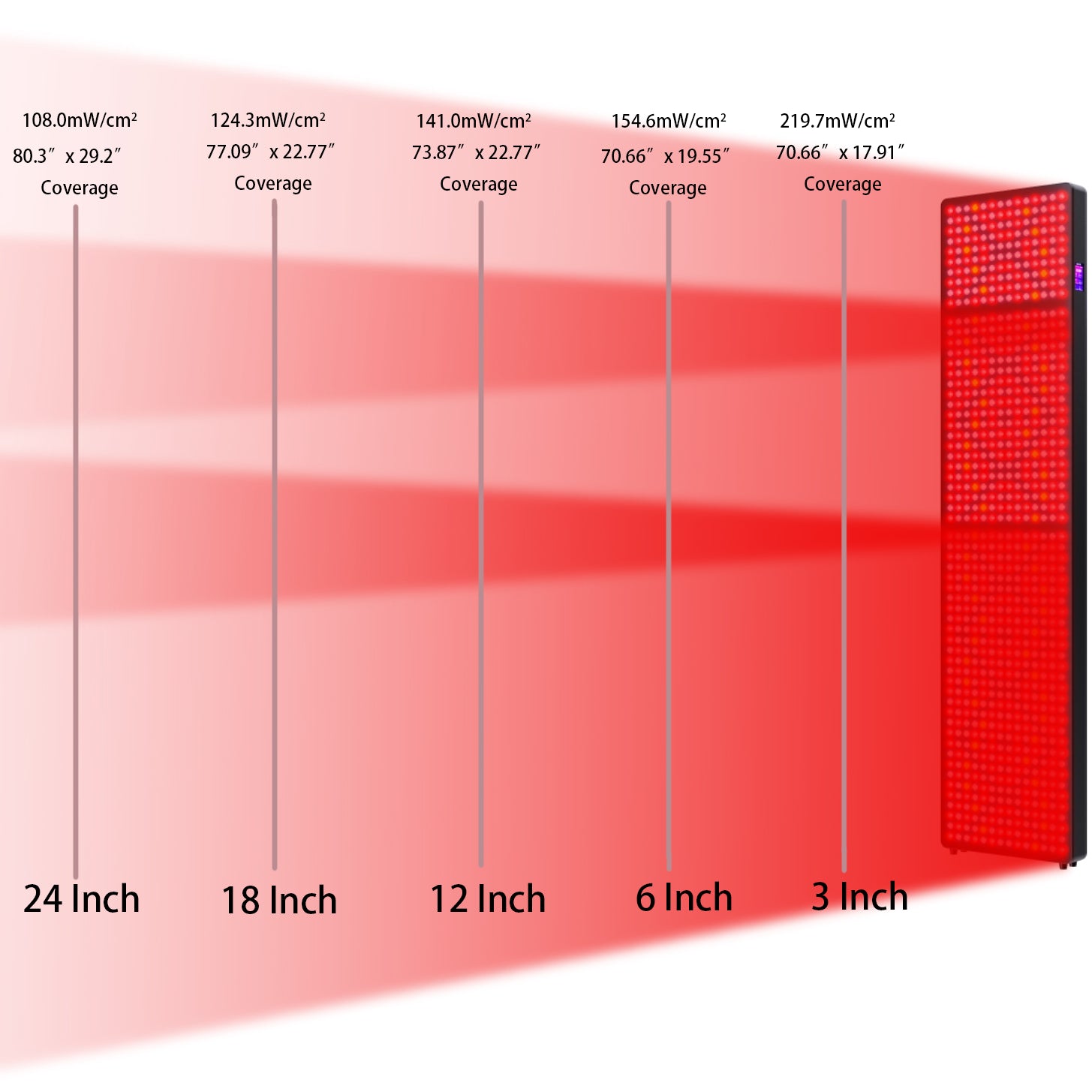

Irradiance and coverage by distance
| Distance | Irradiance | Coverage area |
|---|---|---|
| 3 in | 219.7 mW/cm² | 70.7 × 17.9 in |
| 6 in | 154.6 mW/cm² | 70.7 × 19.6 in |
| 12 in | 141.0 mW/cm² | 73.9 × 22.8 in |
| 18 in | 124.3 mW/cm² | 77.1 × 22.8 in |
| 24 in | 108.0 mW/cm² | 80.3 × 29.2 in |
Manufacturer-measured values. The recommended use distance is 6–24 inches.
Specifications
Full technical specifications
Light

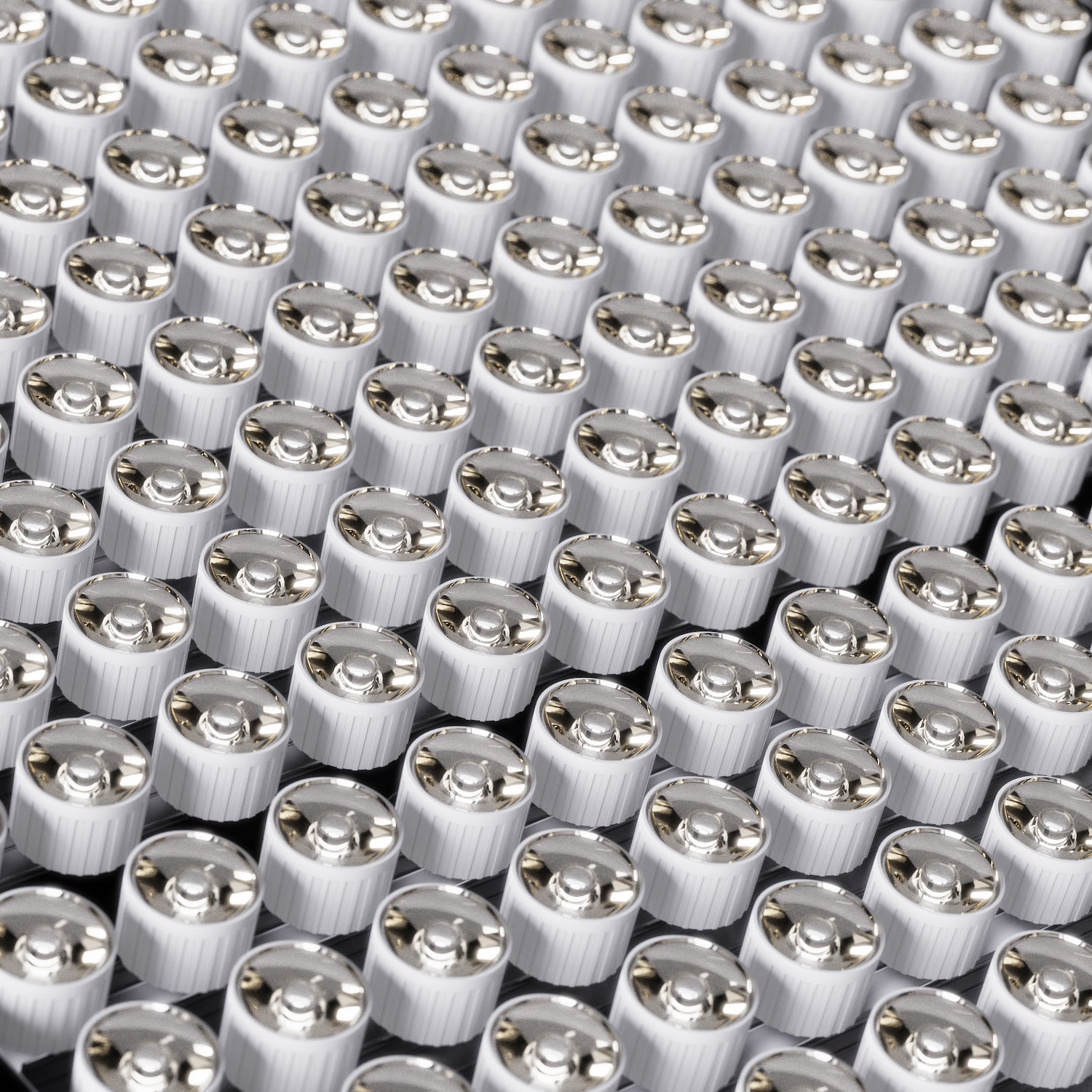

- LEDs
- 840 (38–45 mil chips, gold-wire bonded, copper holders)
- Wavelengths
- 480 · 630 · 660 · 810 · 830 · 850 · 940 nm
- LED ratio
- 24 : 138 : 198 : 78 : 174 : 192 : 36
- Lens beam angle
- 30°
- Irradiance
- 154.6 mW/cm² at 6 in · 108.0 mW/cm² at 24 in
- Flicker
- Flicker-free
- EMF
- 0 μT at 3 in
- LED lifespan
- 100,000 hours
Size & build
- Panel dimensions
- 67.6 × 16.3 × 2.79 in (1717 × 415 × 71 mm)
- Panel weight
- 81.6 lb (37 kg)
- Frame
- Anodized aluminum alloy, no side vents
- Front cover
- Patented acrylic sheet, water- and scratch-resistant
- Cooling

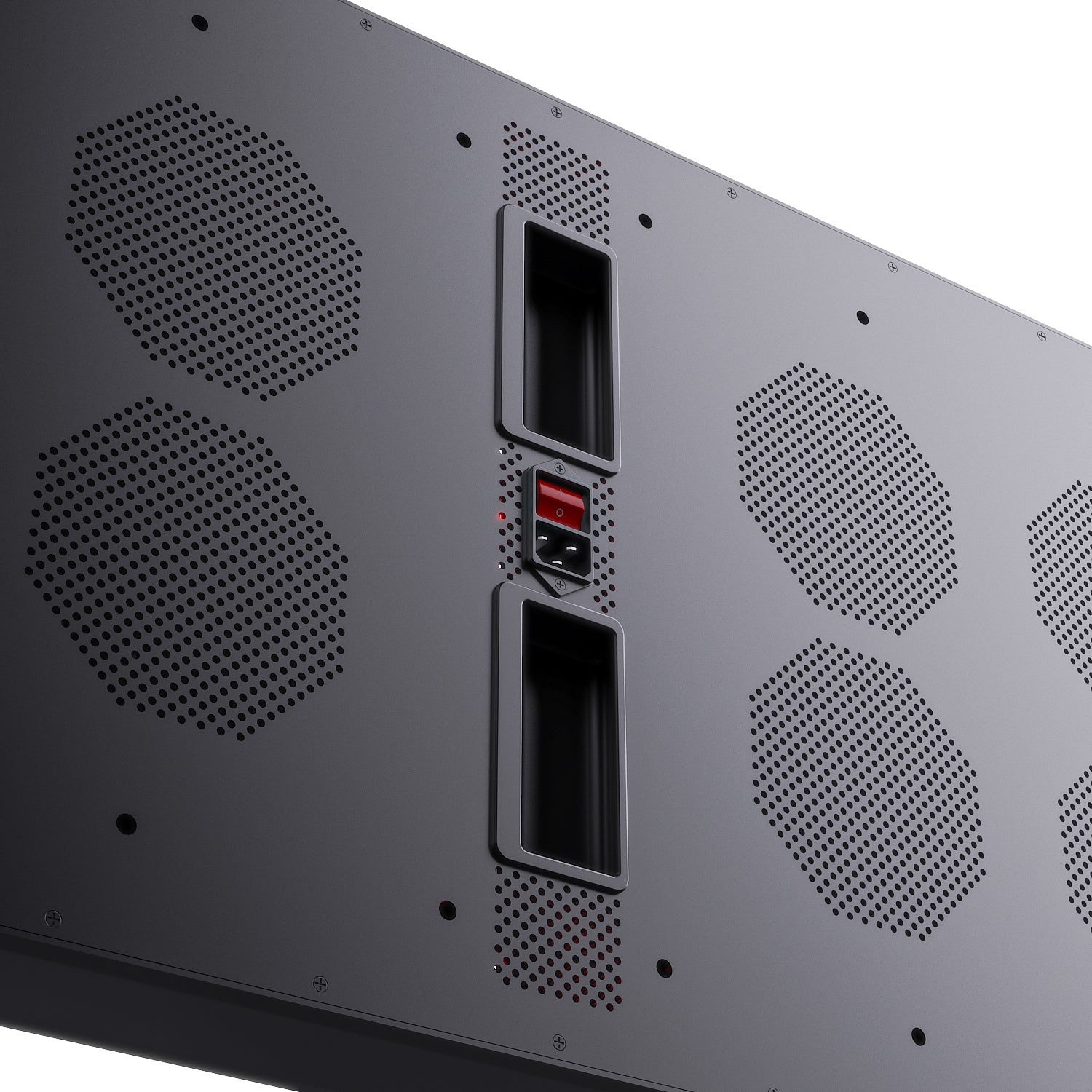

- 8 fans with aluminum heat fins
- Construction
- Modular LED boards; three zones (head, torso, legs)
Electrical
- Input voltage
- 100–240 VAC, 50/60 Hz
- Power consumption
- 1,092 W (about 9.1 A at 120 V)
- Rated LED power
- 4,200 W
- Plug
- Standard U.S. power cord included
Controls
- Interface
- HD color touchscreen plus remote control
- Timer
- 0–30 minutes, adjustable in 1-minute steps
- Dimmer
- 0–100%, independent for red and near-infrared
- Pulse
- 0–10,000 Hz, independent for red and near-infrared
- Modes
- 6 preset modes, up to 20 saved custom settings
- Multiple panels
- Wireless synchronization by panel ID
Acrylic base (optional)
- Model
- SZGYHRH3600, made for the RH3600
- Material
- Acrylic, black
- Use
- Holds the panel upright on the floor, no wall mounting

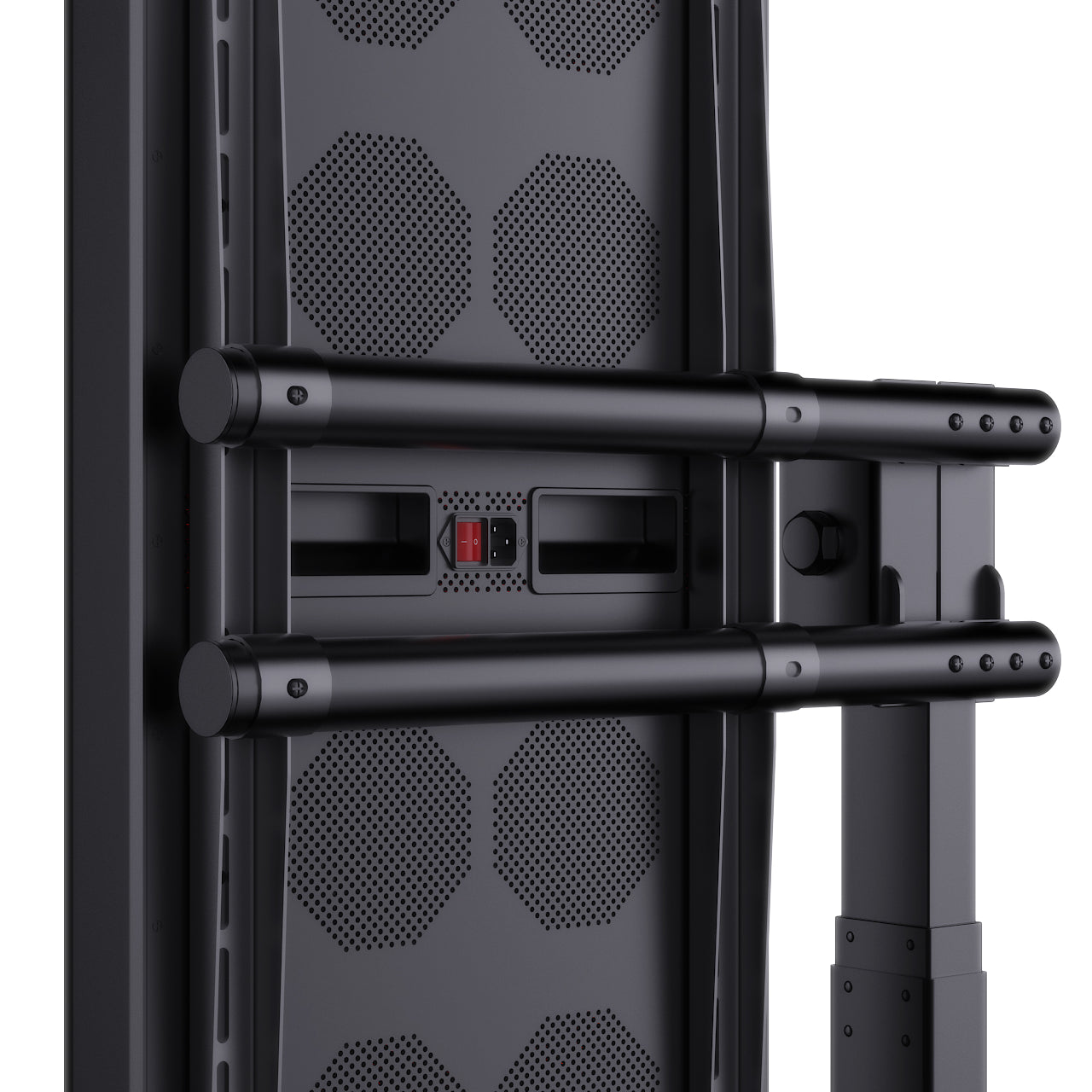

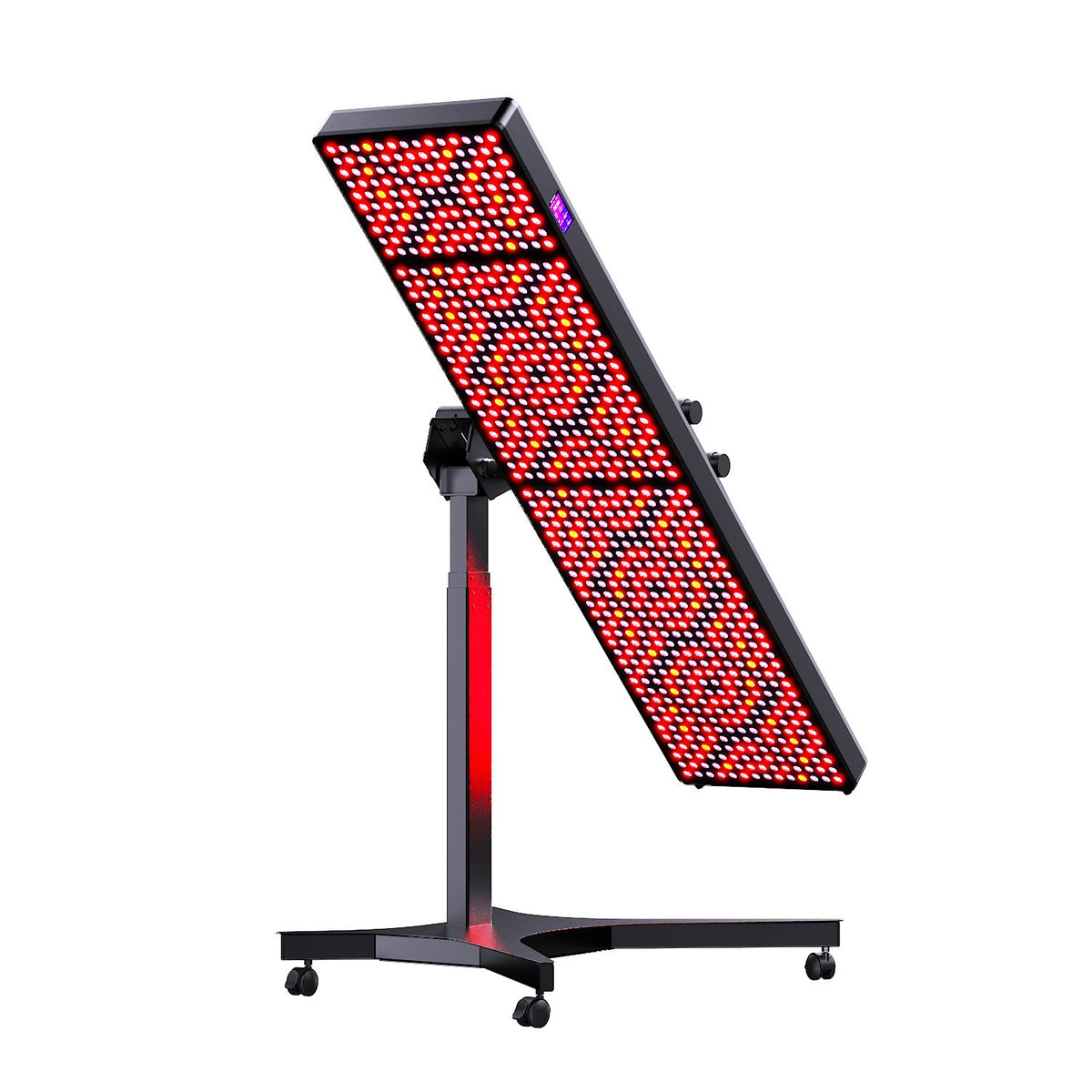

Motorized stand (optional)
- Height adjustment
- Motorized; lowest 27.5 in, highest 66.9 in
- Base footprint
- 36.4 × 28.1 in, four casters
- Orientation
- Panel rotates for vertical or horizontal use
- Control
- Wireless remote and wired keypad, 3 memory heights, cm/inch display
- Stand weight
- 77.2 lb (35 kg)
Warranty
- Coverage
- 3-year limited manufacturer warranty from the date of shipment
- Remedy
- Repair or replacement of defective components
- Exclusions
- Misuse, accidental or intentional damage, unauthorized modification, force majeure
Dimensions & space
Plan your space
The panel is slim enough for a bedroom corner or a dedicated suite. Allow 6–24 inches between you and the panel during use.
Space checklist
- Floor area with stand: about 36.4 × 28.1 in for the base, plus 6–24 in in front for use
- Power: a standard 100–240 V outlet; the panel draws about 9.1 A at 120 V
- Airflow: keep the rear fans clear; don't use it in wet or dusty spaces
Mounting options
Every panel includes a wall/door hanging kit. For a freestanding setup, add a stand.
Adjustable floor standManual height adjustment, black or whiteAdd-on above · +$390.60
Motorized standHeight-adjustable with remote, vertical or horizontal useAdd-on above · +$1,068.20
Acrylic baseBlack acrylic floor base made for the RH3600Add-on above · +$236.60Controls
Simple to start, detailed when you want it
HD touchscreen

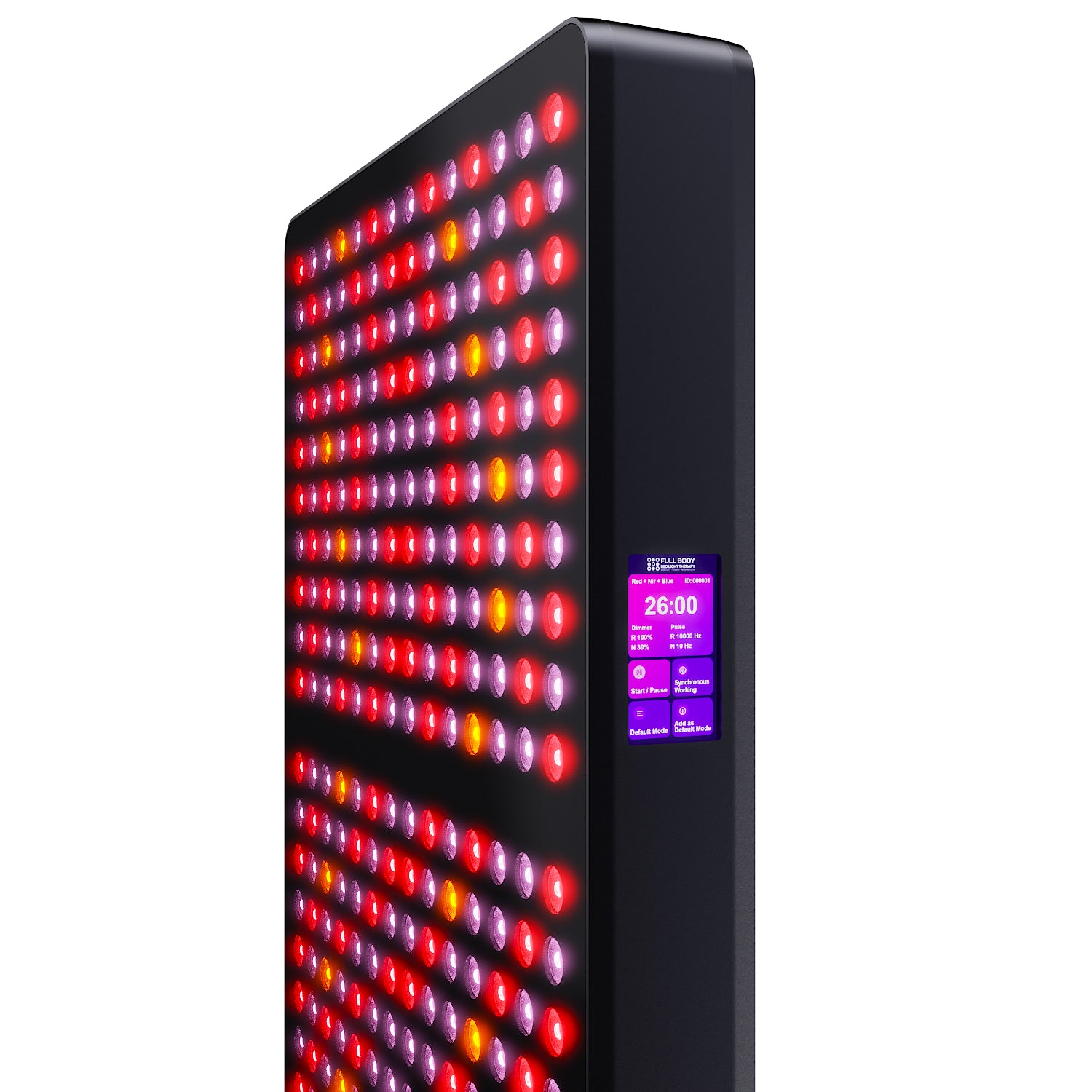

Choose red, near-infrared, blue or any combination, then set time, brightness and pulse from the side-mounted screen.

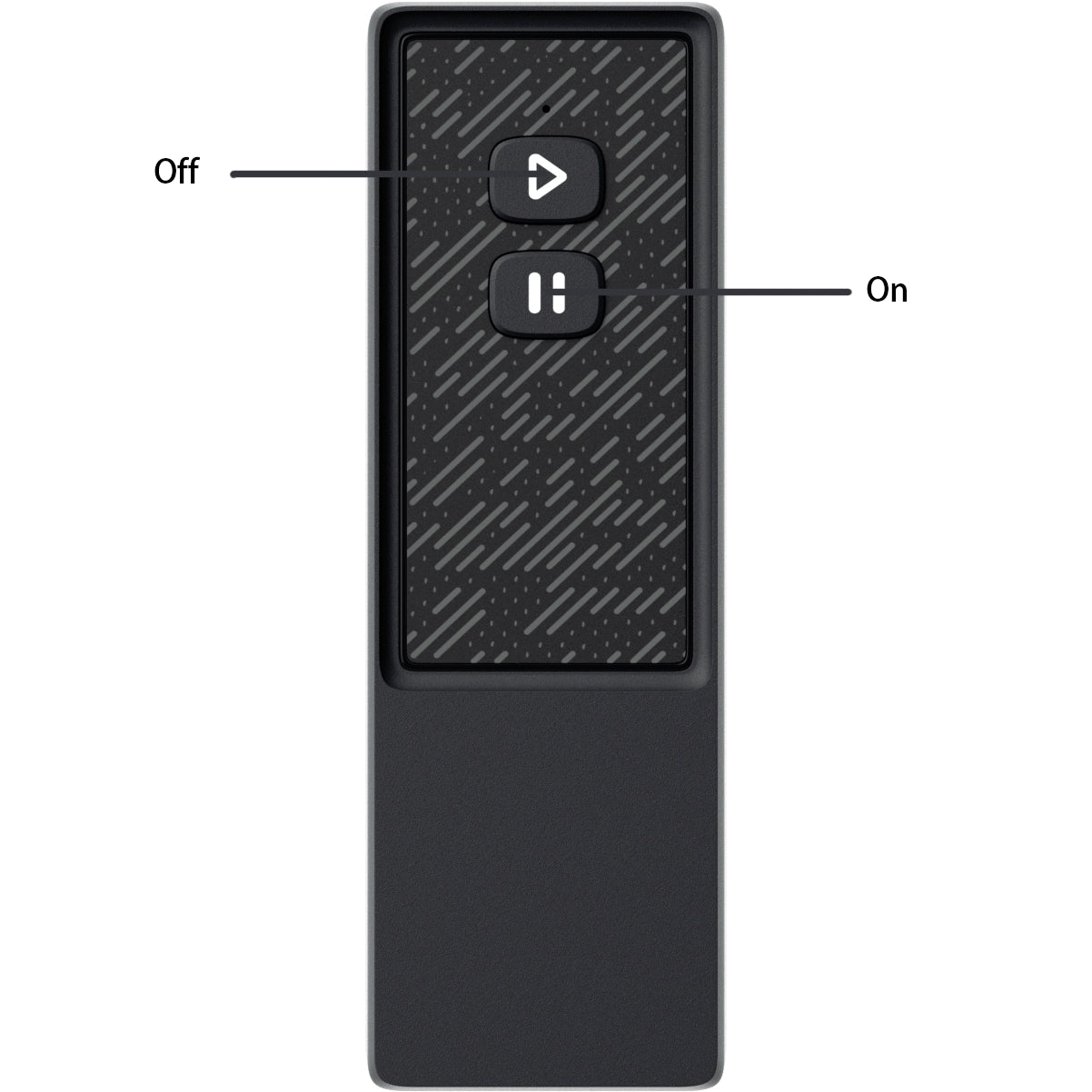

Remote control
Start, pause and switch modes from where you're standing, without reaching for the panel.
Presets & saved settings
Six preset modes, plus up to 20 custom settings you can name and recall.
Multi-panel sync
Add a second panel later and run both with the same settings by panel ID.
In the box
What arrives
Panel package
- RH3600 panel
- Remote control
- Power cord (U.S.)
- Wall/door hanging kit
- Protective goggles
Motorized stand package (if selected)
- Square post, base, base plate and 4 casters
- Control box, adaptor and power cord
- Remote control and wired keypad
- Panel fixing rods, cross braces and lifting-rod connector
- All screws, plus 4 mm and 5 mm hex wrenches
The panel and any stand or base ship in separate reinforced boxes at the same time. They often arrive 4–24 hours apart.
Setup & use
Manufacturer's guidance
From the RH-series user manual. This is general product guidance, not medical advice. If you have a health condition or take medication, check with your clinician before starting.
Getting started
- Stand or sit 6–24 inches from the panel with skin exposed
- Wear the protective eyewear during every session
- New users: start below 60% brightness for about 10 minutes, every other day, for the first 1–2 weeks
Typical session
- Red and near-infrared together, 50–80% brightness
- 10–30 minutes per area, no more than 30 minutes in one session
- Up to once daily for the same area; pulse at 0 Hz unless a professional advises otherwise
Check with your clinician first if you
- Are pregnant, or have epilepsy, lupus or a malignant tumor
- Have photosensitivity or take medications that increase light sensitivity
- Have hyperthyroidism, have recently had LASIK, or are under 13
See the user manual for the full list.
Compare
Find the right size
| RH2400 | RH3600 This panel | SL5000 | |
|---|---|---|---|
| Best for | Upper body or half body | Full body, head to legs | Full body, highest output |
| Size | 45.6 × 16.3 × 2.79 in | 67.6 × 16.3 × 2.79 in | 70.9 × 18.6 × 2.4 in |
| Weight | 40.8 lb | 81.6 lb | 61 lb |
| LEDs | 560 | 840 | 960 |
| Wavelengths | 5 or 7 | 7 | 5 or 7 |
| Irradiance at 6 in / 24 in | 152 / 101 mW/cm² | 154.6 / 108 mW/cm² | 181 / 124 mW/cm² |
| Power use | 728 W | 1,092 W | 1,310 W |
| Frame | Aluminum alloy | Aluminum alloy | Powder-coated steel, black or white |
| Price | From $1,899 | From $2,599 | From $2,519 |
| View RH2400 | View SL5000 |
Shipping, returns & warranty
Clear terms, before you buy
Shipping
Complimentary economy shipping on orders $100+ within the contiguous U.S. Orders placed by 2 PM ET begin processing in 1–2 business days, and delivery typically takes 3–9 business days in total. We can't ship to Alaska, Hawaii, U.S. territories, P.O. boxes or APO/FPO addresses.
Returns
Request a return within 30 days of delivery for unused, uninstalled items in their original packaging. Please report damage within 48 hours of delivery. Approved non-defective returns have a 25% restocking fee, and return shipping is the customer's responsibility. Full return policy
Warranty
A 3-year limited manufacturer warranty begins on the date of shipment. It covers repair or replacement of components that fail in normal use. It excludes misuse, accidental damage and unauthorized modifications.
FAQ
Questions, answered
Do I need the stand?

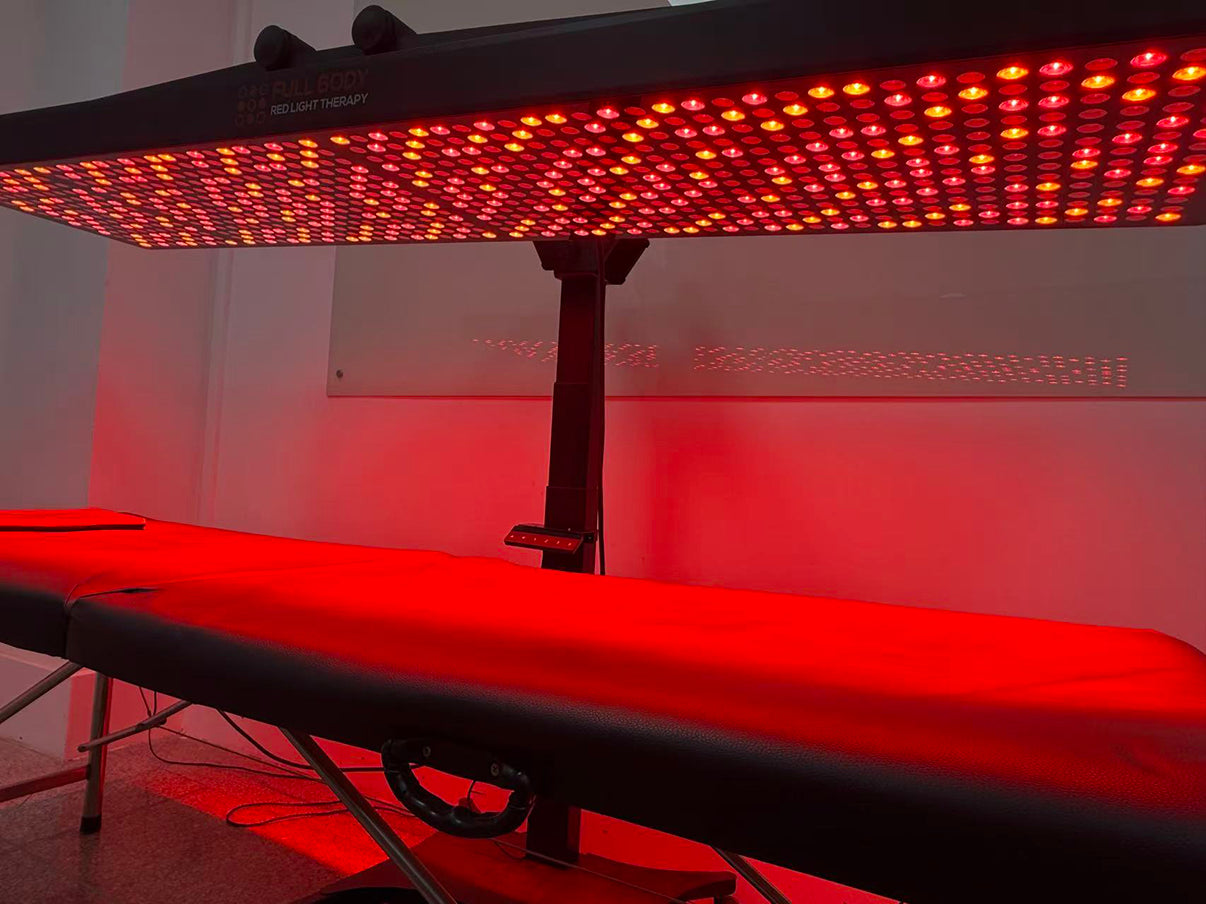

No. Every panel comes with a wall/door hanging kit. If you prefer a freestanding setup, add the adjustable floor stand, the motorized stand or the acrylic base. The acrylic base holds the panel upright on the floor. The motorized stand adds hands-free height adjustment and lets you use the panel horizontally, for example above a bed or table.
What kind of outlet does it need?
A standard household outlet. The panel accepts 100–240 V and uses 1,092 W, which is about 9.1 A on a 120 V circuit.
How far should I stand from the panel?
The manufacturer recommends 6–24 inches. Closer distances deliver higher irradiance to a smaller area. Farther distances cover a wider area at lower intensity.
How long is a session?
The manufacturer's guidance is 10–30 minutes per area, and no more than 30 minutes per session. New users should start with about 10 minutes at under 60% brightness. See Setup & use above for details.
Is eye protection needed?
Yes. Protective goggles are included with every panel, and the manufacturer recommends wearing them during every session.
Does it get hot or make noise?
Eight fans and aluminum heat fins manage heat, and the fans are audible while the panel runs. The manufacturer hasn't published a sound rating for the RH3600. Keep the rear vents clear.
Can I turn off the blue light?
Yes. Blue (480 nm) is controlled separately and can be switched off without affecting red or near-infrared.
Can I add a second panel later?
Yes. Panels can be synchronized wirelessly so they run with the same settings.
How is it delivered?
Shipped by carrier to your door, with complimentary shipping in the contiguous U.S. If you add a stand or base, it arrives as a second box, often a few hours apart.
What if something arrives damaged?
Photograph the packaging and product, then contact us within 48 hours of delivery. Chat with us now or email info@heavenlifewellness.com. We'll guide you through the next steps.
