Control from inside or out
Independent 10-inch touchscreens inside and outside the capsule make operation and monitoring simple.
Hyperbaric Chambers · Lying Hard-Shell Series

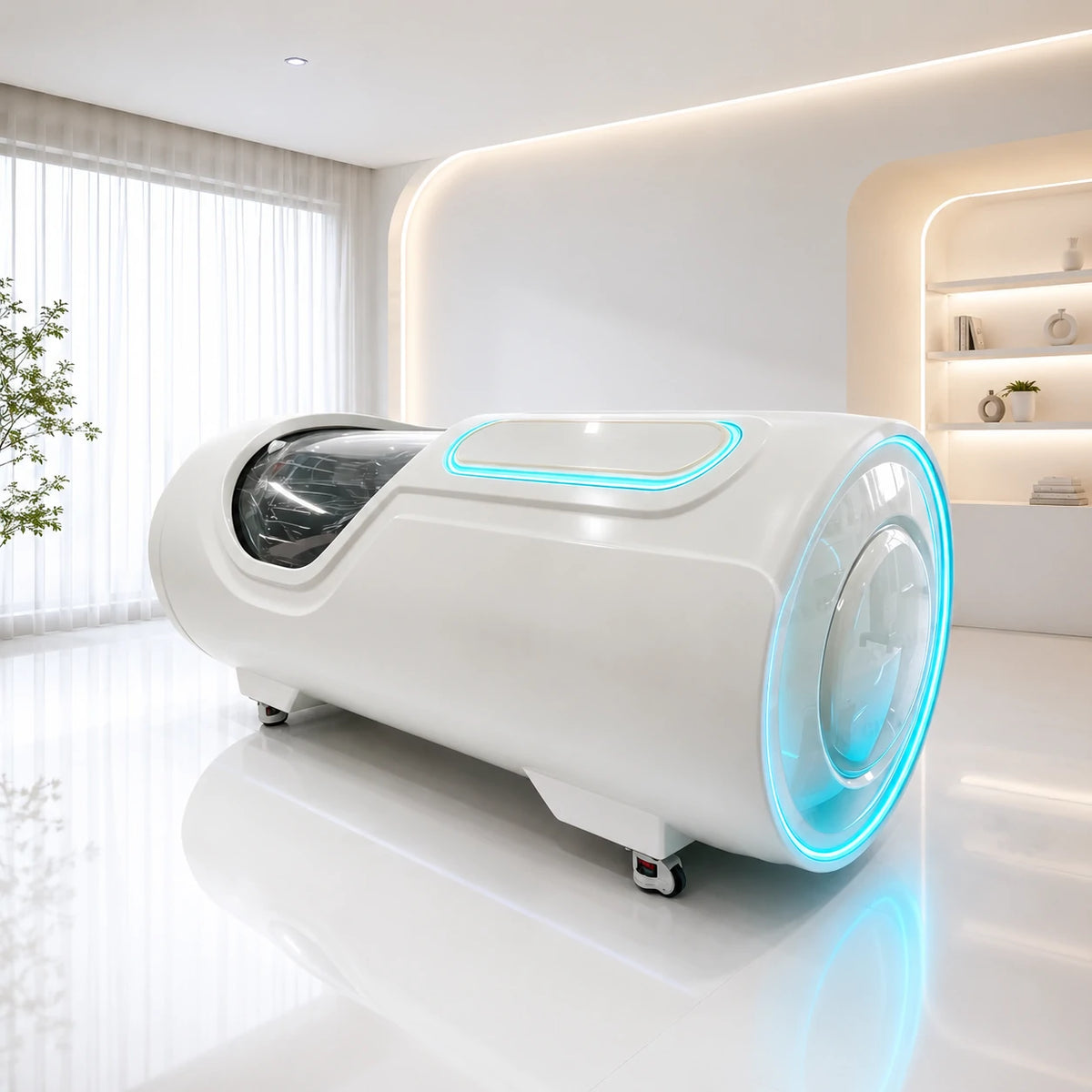

New SeriesOxyCheny CY23 Lying Hard-Shell Hyperbaric Chamber
Regular price $23,750.00 Complimentary door-to-door delivery · contiguous U.S.
A lie-down hard-shell capsule with a carbon steel frame, dual 10-inch touchscreens inside and out, and up to 20 L/min of oxygen.
- 2.0ATA working pressure
- 20 L/minoxygen flow
- 91 × 35″footprint
- 2-yrwarranty
- ◷Built to order · about 3 months About 45 days of production plus about 45 days by sea. Customs and duties are included. Details
- ◇2-year manufacturer warranty Free replacement of faulty parts, plus lifetime online support. Details
- ↺30-day returns On unused items in original packaging. Return policy
- ✦Questions? Chat with us now Instant answers on sizing, power and delivery. Start a chat
Not sure which chamber fits your space?Our wellness team can help you compare sizes, pressure options, power and delivery, with answers in seconds.
Overview
A modern capsule for lying-down sessions
Fresh, filtered air
Five-stage 0.1 µm filtration on the air intake, exhaust and oxygen outlets, with continuous fresh-air exchange above 2 m³/min.
Built to last
High-yield carbon steel with a baked-on white finish, and a CNC-machined door frame with double sealing.
See it in action
Watch the CY23
Two closer looks at OxyCheny's premium hard-shell capsule, from the manufacturer.
Specifications
Full technical specifications
From OxyCheny's CY23 product page.
Chamber
- Model
- OxyCheny CY23, lying hard shell
- Capacity
- 1 person
- Working pressure
- 2.0 ATA
- Shell
- High-yield carbon steel
- Finish
- White baked paint
- Door seal
- Integral CNC frame with double sealing
- Assembly
- Integrated, one-piece assembly
Controls & safety
- Controls
- Two 10-inch touchscreens, one inside and one outside
- Communication
- Wireless two-way intercom
- Air conditioning
- Air conditioner designed for oxygen chambers
Oxygen & air
- Oxygen flow
- Up to 20 L/min
- Oxygen concentration
- 93%
- Filtration
- 5-stage, 0.1 µm, on the air intake, exhaust and oxygen outlets
- Fresh air exchange
- More than 2 m³/min
Electrical
- U.S. power
- OxyCheny builds U.S. orders for 110 V with standard U.S. plugs. Power draw is confirmed when your order is placed.
Dimensions & space
Plan your space
Plan floor space for the capsule plus room to step in and out beside it.
| Component | Size | Weight |
|---|---|---|
| Chamber | 90.6 × 35.4 × 37.4 in (2300 × 900 × 950 mm) | Approx. 794 lb (360 kg) |
Size is from OxyCheny's published specifications. Weight confirmed by OxyCheny in October 2026. The exact shipping weight is confirmed when your order is placed.
- Measure doorways, hallways and turns on the way to the room. The capsule is 35.4 in wide.
- Ask your contractor to confirm the floor can carry about 794 lb plus the occupant.
- Plan an outlet location for the system and air conditioner.
Your colors
Your space. Your aesthetic. Your chamber.
The CY23's exterior and interior upholstery can be customized. You choose your colors after you order, and we confirm them with you before production begins. The RAL and upholstery color charts are in the gallery above. Chat with us now for help choosing.
Safety & use
Before your first session
From OxyCheny's operating guidelines. This is general product guidance, not medical advice. Hyperbaric sessions aren't right for everyone, so check with your clinician before you begin.
Before you enter
- No phones, tablets, batteries or other electronics
- No lighters, matches, perfumes or other flammable items
- No sharp objects. Wear 100% cotton clothing.
During a session
- You may feel pressure in your ears during the first 10–15 minutes. Swallow or yawn to equalize.
- The system holds a steady pressure automatically
- At the end, it depressurizes slowly before the door opens. Never force the handle.
Care
- Daily: wipe the interior with a non-alcohol disinfectant and check the door seal
- Weekly: check the concentrator filters and clean the air intake
- Monthly: check the tubing and pressure relief valves. Replace the HEPA filters every 500 hours.
Pressure and oxygen can cause ear or sinus discomfort and other effects, and oxygen raises fire risk. Read the FDA's guidance on the safe use of hyperbaric devices.
Research
What the research explores
Most published trials used 2.0 ATA with 100% oxygen across 40–60 supervised sessions. Home chambers and protocols differ, so these findings don't automatically apply to home use.
Staying sharp with age
A randomized trial in adults over 64 reported improvements in attention and processing speed after a 60-session course. Read the study
Stamina and exercise capacity
Small controlled studies in older adults and in trained athletes aged 40–50 reported better aerobic measures under clinical protocols. Older adults · Athletes
Recovery between workouts
A small cyclist study at 1.3 ATA reported better performance in a follow-up effort. Overall, recovery research is mixed. Read the study
Therapy applications from OxyCheny
OxyCheny's blog covers how hyperbaric sessions are being explored across many areas of health and performance.
Brain and cognition
Mood and mental well-being
Recovery and performance
Skin, tissue and joints
Whole-body wellness
These articles are from the manufacturer, and some describe clinical uses that are outside home wellness use. They are general education, not medical advice. Talk with your clinician before starting hyperbaric sessions, especially if you are managing a health condition.
More in the hyperbaric research overview.
Delivery, returns & warranty
Clear terms, before you buy
Delivery
Each chamber is built to order. Production takes about 45 days, and sea freight takes about 45 more, so plan on roughly three months from order to delivery. Custom requests can take longer, and we confirm your timeline before production begins. Door-to-door delivery with customs and duties is complimentary within the contiguous U.S. Some remote addresses may need to collect from a nearby warehouse.
Returns
Request a return within 30 days of delivery for unused, uninstalled items in their original packaging. Please report damage within 48 hours of delivery. Approved non-defective returns have a 25% restocking fee, and return freight is the customer's responsibility. Full return policy
Warranty
OxyCheny offers a 2-year warranty on its hyperbaric chambers, with free replacement of defective parts during the warranty period and 24/7 online support by chat, email and video.
FAQ
Questions, answered
Can I choose my colors?
Yes. The exterior shell and interior upholstery can be made in colors from standard RAL or Pantone charts. You choose them after you order, and we confirm them before production begins.
Will it work with U.S. power?
Yes. OxyCheny builds U.S. orders for 110 V with standard U.S. plugs. Have an electrician confirm the circuit before delivery.
How long does delivery take?
About three months: roughly 45 days to build your chamber and about 45 days by sea. Custom requests can take longer, and we confirm your timeline before production begins.
Compare
Compare the New Series
All six New Series chambers are built to order, with custom shell and upholstery colors included in the price. Need help choosing? Chat with us now.
| Mini Vivid CY21 | T8 Mini | CY23 Lying This chamber | T11 Two-Person | CY10A Two-Person | CY11A Four-Person | |
|---|---|---|---|---|---|---|
| People | 1 | 1 | 1 | 2 | 2 | 4 |
| Position | Seated | Seated | Lying | Seated | Seated | Seated |
| Footprint (L × W) | 53.9 × 29.5 in | 53.9 × 29.5 in | 90.6 × 35.4 in | 82.7 × 41.3 in | 78.7 × 58.3 in | 118.1 × 70.9 in |
| Pressure | 1.5 or 2.0 ATA | 1.5 or 2.0 ATA | 2.0 ATA | 2.0 ATA | 2.0 ATA | 1.5 or 1.9 ATA |
| Chamber weight | 1,168 lb | 1,168 lb | 794 lb | 1,653 lb | — | — |
| Price | $18,900 | $18,750 | $23,750 | $36,250 | $36,250 | $50,000 |
| Video | Watch video | — | Watch video | — | Watch video | Watch video |
| View CY21 | View T8 | View T11 | View CY10A | View CY11A |
Wellness guidance
Chat with our wellness team
Questions about sizing, pressure options, power or delivery? Start a chat any time for instant answers, and our team follows up on anything more detailed. We offer general product guidance, not individualized medical advice.
